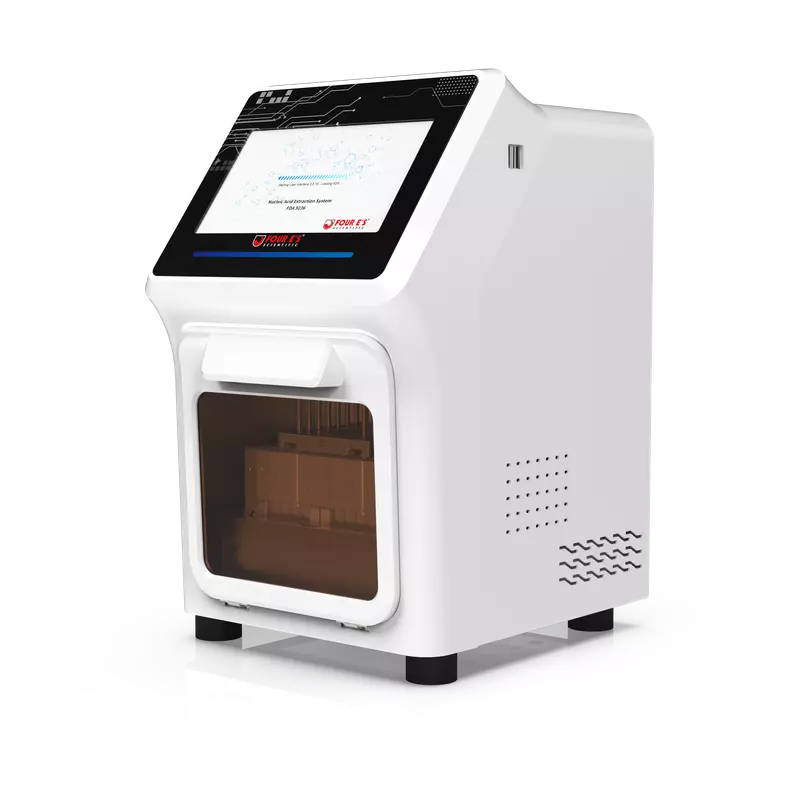

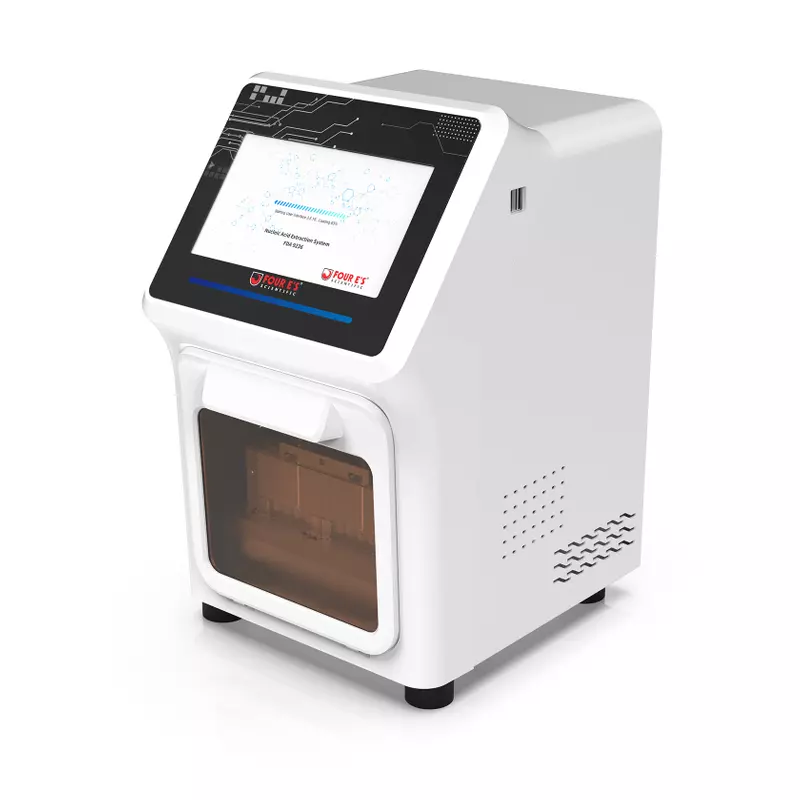

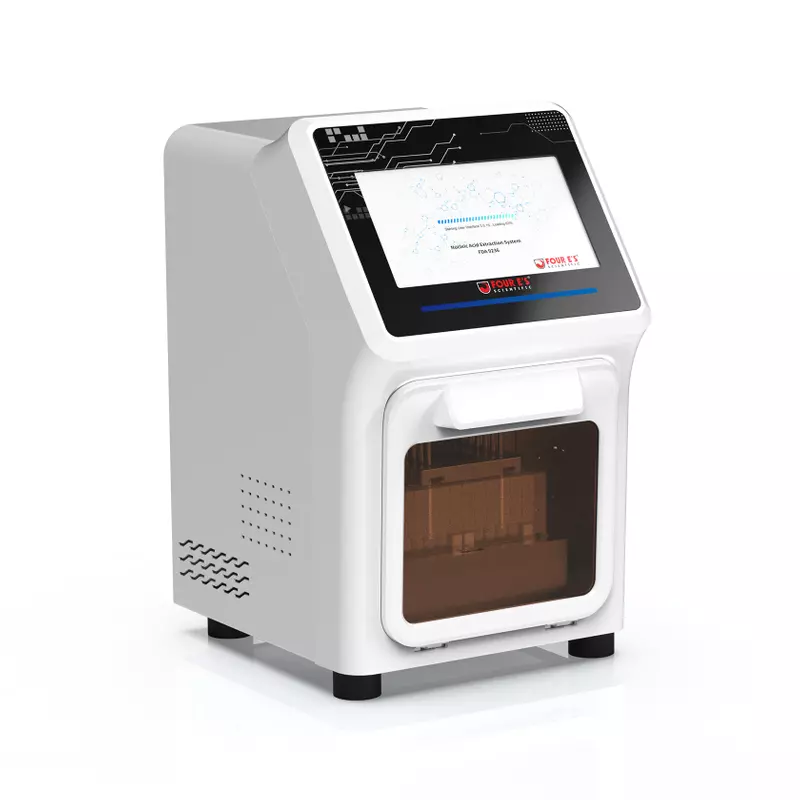

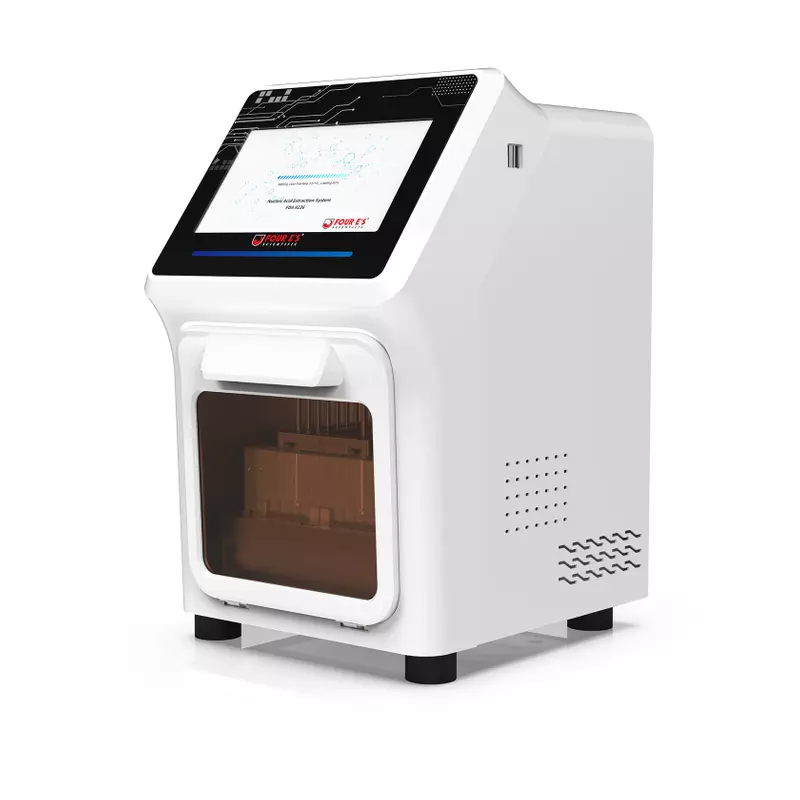

Nucleic Acid Extraction System MultiEX 016

MultiEX 016 is an automated nucleic acid extraction and purification system which can process up to 16 samples per run. Utilizing Magnetic Bead Separation technology, the Nucleic Acid Extractor has the capability of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc.

MultiEX 016 features lightweight and compact design, user-friendly touchscreen interface and excellent mixing capability. It can be powered by a 24V external battery, enabling mobile on-site nucleic acid extraction. It is equipped with UV disinfection system to eliminate cross-contamination between runs.
Compare
Add to wishlist
Add to quote
This product is already in your quote request list.
Browse the list
Description

Features:

  • Compact & Lightweight: The small footprint fits into tight lab spaces while still delivering full nucleic acid extraction capability.
  • Versatile: Can be powered by a 24V external battery, enabling mobile on-site nucleic acid extraction.
  • Ease Of Use: 7-inch capacitive touchscreen and intuitive user interface makes protocol creation simple and easy.
  • Flexible: As an open platform, all parameters can be adjusted to suit different extraction kits.
  • Minimal Hands-On Time: Fully automated system with auto-check function limits manual intervention and provides reliable and reproducible results.
  • Powerful Mixing: Adjustable, high-speed stirring (up to 10Hz) properly homogenizes even challenging samples for maximum nucleic acid yields
  • Contamination control: Integrated UV disinfection system eliminates cross-contamination between runs.
  • Advanced Temperature Control: Multiple heating modules with precise temperature control and a fast ramp rate (can reach 125°C in about a minute).
  • Convenient program management: Programs can be easily imported and exported through USB.
Specifications

Specifications

Model MultiEX 016
Processing volume 50-1000ul
Throughput 1-16 samples
Plate quantity 1
Plate type 96-Deep Well Plate (conical/round bottom)
Processing time 20min-40min/run (depending on reagent types and volumes)
Reagent type Magnetic bead-based reagent kits (open system)
Program management Create, Edit and Delete options available
Heating temperature 37℃-125℃
Temperature accuracy 1.5℃
Magnetic beads recovery rate 98%
Inter-well purification variance CV<3%
Noise <55db
Mixing intensities Adjustable: 8 Levels
Max. Stirring Speed 10Hz (10 times up and down in 1 second)
Data storage capacity >500 programs
Dimension 210mm*250mm*315mm
Display 7-inch color touchscreen
Lighting YES
UV sterilization YES
Power supply 24V DC, 100-240V AC Adapter included (Operable with 24V 5A Battery)
Weight 9KG
Extension ports 2 USB ports
