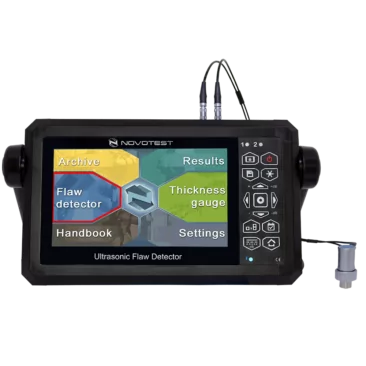

The main advantages of the Ultrasonic Flaw Detector NOVOTEST UD3701 include:
BRIGHT TFT TOUCHSCREEN DISPLAY
Thanks to the multi-touch screen, the operator can easily move the gates and set the scan without using buttons and encoders. All functions for setting up and controlling the device can be carried out both through the touchscreen and in the classic way – using the keyboard. The TFT display of the device is very bright and contrasting with a resolution of 800×480 pixels, which allows users to get clear picture of the signals on the screen.
AVAILABILITY OF MANY USEFULL FUNCTIONS
The envelope mode of the signal allows user to detect the maximum of signals, as well as get the envelope of the signal curve when scanning the reflector.
Auto zoom – the electronic magnifier mode allows operator to focus the scan on the selected gate by clicking just one key.
Fill function – designed to improve the perception of the image on the screen of the device. The A-Scan signal is filled with the color matching the color of the signal line.
Simulation of a measurement from a stored record in the instrument memory.
The presence of movable blocks of output of measured values, which allows the operator to arrange blocks of parameters at any place of the A-scan.
DAC & TVG
The Ultrasonic Flaw Detector NOVOTEST UD3701 has the ability to build and configure the Distance Amplitude Correction (DAC) and Time Varied Gain (TVG) functions, using up to 16 points, to estimate the size of the reflectors relative to the reference ones at different depths.
DGS CURVES
Using the DGS (Distance Gain Size) mode, the operator can configure the device according to the signal from the reference reflector, and then receive automatic calculation of equivalent reflector sizes at various depths.
COLOR SCHEMES
Ultrasonic Flaw Detector NOVOTEST UD3701 gives the operator full control over the color scheme of the device in the “FLAW DETECTOR” mode for more comfortable work. Also in the device there are two predefined color schemes: dark and light. This option allows the operator to choose the option of displaying information comfortable for the eyes both in a dark room and in bright sun.
AUTOMATIC DEFECT SIGNALING
Using two independent gates, the operator can set the boundary parameters of the amplitude or distance (time) of the signals on the scan, which will indicate the presence of defects through sound and light indications. This allows the operator to scan the object without continuous monitoring of the display, which subsequently reduces the complexity of testing.
UNIVERSALITY OF APPLICATION
The device is ideally suited for performing ultrasound diagnostics in laboratory and workshop conditions, however, if necessary, it can be used in the field. To do this, we recommend to use of a special cover that protects the device from dirt and moisture, and also allows the operator to completely free his hands and easily testing of various products directly at the facility.
PC SOFTWARE & ARCHIVE
Using special software, the device allows user to transfer to the PC a previously saved measurement archive. Also in the device it is possible to save parameters and settings of tested objects and used probes.
