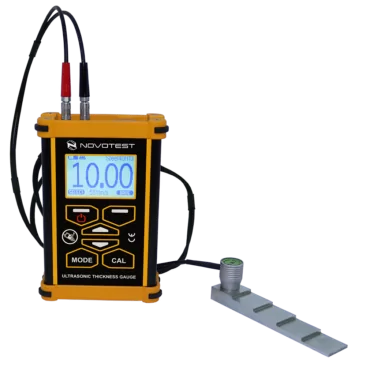

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST

This special version of the thickness gauge, housed in a durable aluminum enclosure, is designed for extreme conditions where the device might be dropped or damaged. Its robust profile withstands high static and dynamic compression, allowing for “careless” use.

Add to quote

Description

Some advantages of Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST:

WIDE RANGE OF THICKNESS OF TESTING PRODUCTS

Same as other ultrasonic thickness gauges TM “NOVOTEST”, Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST allows user to measure the thickness of products in a wide range with a minimum set of transducers, this is achieved thanks to the advanced settings of the device (amplification of two stages, V-correction, etc.)

UNIVERSAL TRANSDUCERS

Any dual-element probes can be connected and configured to the device by cables with standard connectors. What makes Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST universal to use, and does not limit users in choosing a probes for operation.

DISPLAY THE PRODUCT PROFILE WHEN SCAN

The device has a scanning mode of the product in the mode of a B-scan, which allows user to visualize thinning and thickening of the wall like a graph on the display of the device. This allows the user to see the product profile, which simplifies the operator’s work. Additionally, there is an alarm function for exceeding the maximum and minimum thickness limits that are pre-set by the operator.

THICKNESS SAMPLE FOR ADJUSTING THE DELAY OF THE TRANSDUCER

Like other ultrasonic thickness gauges TM “NOVOTEST”, the Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST has a thickness sample mounted on the device’s body, which allows the user to quickly set “0” (calculate the delay in the probe) when changing the transducers or the operating conditions of the device.

The device has a memory where the referencebook of the propagation velocities of the most common materials is stored, also the device allows user to save the settings of the transducers and measurement results, which can be stored both in the device and transferred to a PC using special software that is supplied with the standard Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST set.

Advantages

Unique additional protection of metal housing
Material selection and automatic setting of ultrasound velocity
Large graphic display of high contrast and backlight
Display of measured thickness in mm and inches
Convenient menu in the device
Wide choice of UT probes with preset settings in the device
Modes of statistical processing of measurements
Ability to restore factory calibrations
Ability to adjust all parameters of the acoustic path
Ability of further adjusting the user gain (±20 Db) directly from the measurement mode
Wide measurement range (0.4 to 1500 mm and more)
Available probes 1.25-10 MHz:
– 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
– 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
– 2.5MHz probe (echo) 12/2 for thick samples
– 5MHz probe (echo) 10/2 for a wide range of basic samples
– 10MHz probe (echo) 6/2 for thin samples
– 10MHz probe (echo) 2х3 for products of complex shapes, usually turbine blades
– 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
– 2.5MHz probe (echo-echo) 12/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating
– 10MHz probe (echo-echo) 6/2 for through coating
– 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable
– 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable
– 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable
B-scan and control modes
Through-coating (echo-echo) mode
Threshold setting with automatic alarm
Saving the settings for different probes
Compatibility with probes of other manufacturers
V-path correction and TVG adjusting for the user’s probes
Measurement storage and PC software
PC cable connection:
– Online – NOVOTEST.INFO/USB-connect
– Offline – NOVOTEST USB-Connect

Specifications

Probe type range for steel, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	0.4-15 0.45-300 0.8-500 2.5-1000 3-1200 4-1500
Probe dimensions, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	4×9×60 D12×15 D17×20 D20×21 D30×28 D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3 D9/D6 D14/D10 D16/D12 D24/D20 D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2 2,5MHz probe (echo-echo) 12/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating 10MHz probe (echo-echo) 6/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F range 6 – 30 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 2 – 12 mm, coating thickness range – up to 0,6 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types	Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1	No
Probe calibrations (V-path, TVG, etc.)	factory for NOVOTEST probes users for probes of other manufacturers
Probe cable connector type	2 Lemo 00
Probe cable length, m	1,2
Measurement scales	mm (m/s) inch (inch/μs)
Measurement resolution, mm/inch	0.01/0.001 (0.01/0.0001 by request)
Basic measurement accuracy, mm	± (0,01 T+0.05) (*For range 0.8 – 300 mm)
Gain range, dB	± 20
Response time, with no more than, s	1
Setting range of the ultrasonic velocity, m / s	1000-17000
Preset velocities for materials	Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Operating modes	Normal B-scan Control mode
Standards	ASTM E797 EN 14127 EN15317
Body type / Dust and moisture protection level	Plastic, with shockproof silicone case Standard for shop and field operation IP54
Calibration thickness block on the body	6 mm (Steel/~6080 m/s)
PC cable connection	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	No
Storage capacity of measurement results	128
Measurement archives	Device menu PDF Excel (CSV)
Menu languages	English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment	Temperature:-20°C~50°C Humidity: 30%~80%R.H.
Power supply	DC 3V (2 pcs standard batteries AA)
Time of continuous work hours, not less, h	25
Charging	External charger for 2pcs AA batteries
Weight of electronic unit with batteries, no more, kg	0.25
Overall dimensions, mm	130x90x40
Package weight, kg	1.5
Package dimensions, cm	332710
Documents	Operation manual UT-1M Quick guide UT-1M/-ST Brochure UT-1M/-2A
Country of origin	Made in Ukraine (Europe)
Warranty	Basic – 12 months for electronic unit – 6 months for probes Extended (optional) – up to 3 years

General comparative chart of all models NOVOTEST ultrasonic thickness gauges (without UT-3M-EMAT)

Model name	UT-2A	UT-1M	UT-1M-IP	UT-1M-ST
Measuring thicknesses range for steel, mm	0,4 – 1500 (depends on probe)	0,45 – 1500 (depends on probe)
Resolution, mm	0,01
Basic measurement accuracy, mm	± (0,01*T+0,05)
Basic probes / range for steel	2,5 MHz / 2,5 – 1000 mm 5 MHz / 0,8 – 300 mm 10 MHz / 0,45 – 75 mm
Optional probes / range for steel	1,25 MHz / 4 – 1500 mm 2 MHz / 3 – 1200 mm High-temperature 5MHz (up to 250 °С) / 0,8 – 300 mm Echo-Echo 5MHz for through-coating measurements / 3,5 – 26 mm
Compatibility with Active EMAT Transducer EMAT-A1	Yes	No
Compatible probe types	Dual-element Single-element	Dual-element
Operating modes	Normal A-scan B-scan Manual mode Control mode	Normal B-scan Control mode
Measurement methods	Echo Echo-Echo Peak-Peak Zero-crossing	Echo Echo-Echo
Measurement units	mm inch
Display	Color, 3,5 inch, 480*320	Monochrome, 2,5 inch, 128*64
Menu languages	English Ukrainian Russian (other languages optional)	English Spanish Ukrainian Russian (other languages optional)
Body type/ Dust and moisture protection level	Metal, durable /Standard for shop and field operation	Plastic, with shockproof silicone case / Standard for shop and field operation	Plastic, sealed /High – optionally water immersion up to 1m deep for 30 min	Metal, durable /Standard for shop and field operation
Saving of the settings for different probes	Yes
Compatibility with probes of other manufacturers	Yes
V-path correction and TVG adjusting for the user’s probes	Yes
Storage of measurement results	7000 and more (Limited only by the memory card)	128	128	128
PC cable connection (via www.novotest.info)	Yes
Smartphone Wireless connection (via NOVOTEST Lab)	No	Optional	Optional	No
Charger type	Any USB socket (charger adapter, PC, power bank, etc.)	External charger for batteries	Any USB socket (charger adapter, PC, power bank, etc.)	External charger for batteries
Battery	Built-in Li-ion	2pcs standard АА batteries	3pcs standard АА batteries	2pcs standard АА batteries
Electronic unit weight, no more, kg	0,5	0,25	0,35	0,35
Dimensions (L x W x H), mm	165x90x50	122х76х37	160х90х28	130х90х40
Minimum time of continuous work, h	10	25	25	25
Operating temperature range, ° C	-20 to +40

Available options

Couplant
Protective case for electronic unit
Calibration certificate issued by the Independent metrology laboratory
Certificate of origin issued by the Chamber of Commerce and Industry
UT-probes

– 1.25MHz probe for thickness gauge (echo) 20/2
– 2.0MHz probe for thickness gauge (echo) 20/2
– 2.5MHz probe for thickness gauge (echo) 12/2
– 5MHz probe for thickness gauge (echo) 10/2
– 10MHz probe for thickness gauge (echo) 6/2
– 10MHz probe for thickness gauge (echo) 3х2
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating
– 10MHz probe for thickness gauge (echo-echo) 6/2 for through coating
– 5MHz high-temperature probe for thickness gauge (echo) 10/2
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating, underwater, 10 m cable
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating, underwater, 20 m cable
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating, underwater, 30 m cable

Step wedge Calibration Blocks

Thickness nominals	Material
1-3-5-7-10-15 mm	Steel, SS, Aluminum
1-2-3-4-5-6-7-8-9-10-11-12-13-14-15 mm	Steel, SS, Aluminum
2,5-5-7,5-10-12,5 mm	Steel, SS, Aluminum
2,5-5-7,5-10-12,5-15-17,5-20 mm	Steel, SS, Aluminum
2,5-5-7,5-10-12,5-15-20 mm	Steel, SS, Aluminum
2.5-5-10-20 mm	Steel, SS, Aluminum
2-3-4-5-6-7-8-9-10 mm	Steel, SS, Aluminum
2-3-4-5-6-7-8-9-10-11 mm	Steel, SS, Aluminum
2-4-6-8-10 mm	Steel, SS, Aluminum
2-4-6-8-10-12 mm	Steel, SS, Aluminum
2-5-10-15-20-25 mm	Steel, SS, Aluminum
2-5-10-20-30-40 mm	Steel, SS, Aluminum
3-4-5-6-7-8-9 mm	Steel, SS, Aluminum
4-6-8-10-12-15 mm	Steel, SS, Aluminum
5-10-15-20-25-30 mm	Steel, SS, Aluminum
5-10-15-20-25 mm	Steel, SS, Aluminum
5-10-15-20-30-40 mm	Steel, SS, Aluminum
5-10-15 mm	Steel, SS, Aluminum
5-10-20 mm, step 0.1	Steel, SS, Aluminum
5-10-20-30-40-50 mm	Steel, SS, Aluminum
10-11-12-13-14-15 mm	Steel, SS, Aluminum
10-20-30-40-50 mm	Steel, SS, Aluminum
10-20-40-60-80-100 mm	Steel, SS, Aluminum

Reference Thickness Blocks

0,2 mm	Steel, SS, Aluminum
0,3 mm	Steel, SS, Aluminum
0,4 mm	Steel, SS, Aluminum
0,5 mm	Steel, SS, Aluminum
0,8 mm	Steel, SS, Aluminum
1 mm	Steel, SS, Aluminum
1,5 mm	Steel, SS, Aluminum
2 mm	Steel, SS, Aluminum
3 mm	Steel, SS, Aluminum
4 mm	Steel, SS, Aluminum
6 mm	Steel, SS, Aluminum
10 mm	Steel, SS, Aluminum
15 mm	Steel, SS, Aluminum
20 mm	Steel, SS, Aluminum
25 mm	Steel, SS, Aluminum
30 mm	Steel, SS, Aluminum
40 mm	Steel, SS, Aluminum
50 mm	Steel, SS, Aluminum
75 mm	Steel, SS, Aluminum
90 mm	Steel, SS, Aluminum
100 mm	Steel, SS, Aluminum
125 mm	Steel, SS, Aluminum
150 mm	Steel, SS, Aluminum
175 mm	Steel, SS, Aluminum
200 mm	Steel, SS, Aluminum
300 mm

Standard package

Electronic unit Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST
Transducer (ECHO probe) – 1 pc for choice (2.5MHz, 5MHz or 10MHz)
AA batteries – 2 pcs
Charger
Cable for PC
Online PC software
Operating manual
Case
