5″ Multi Magnetic Hotplate Stirrers With Hub Control

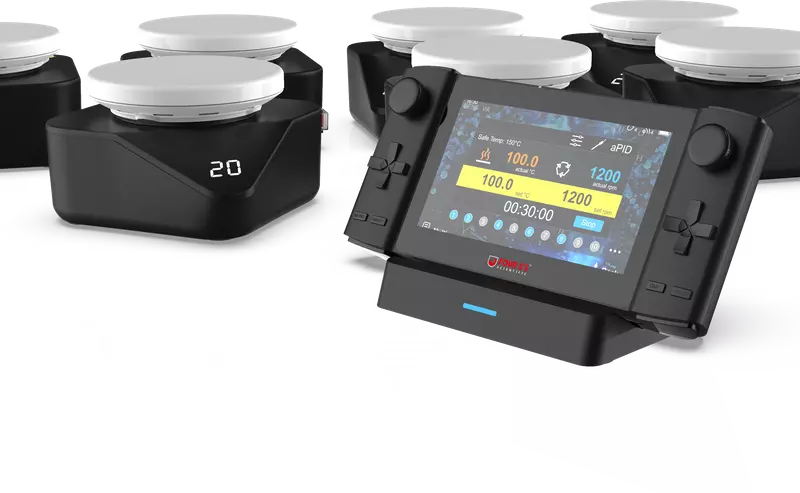

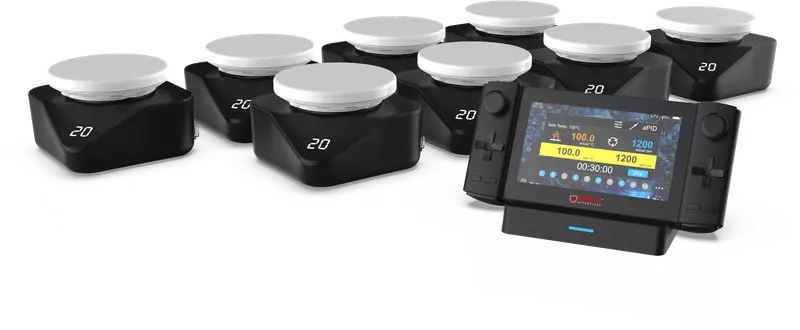

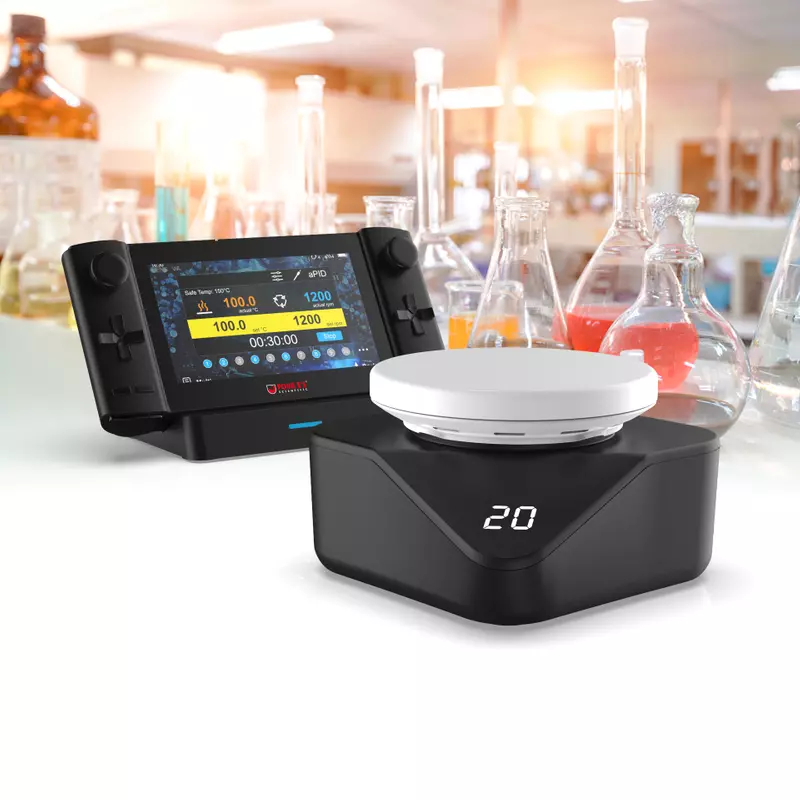

The 5″ Multi Magnetic Hotplate Stirrers With Hub Control, made up of one controller and multiple stirrers, is designed to maximize productivity and enhance temperature control accuracy. The hub controller comes with a large touchscreen display, controlling each hotplate stirrer to heat evenly and mix various types of liquids and solutions.

The hotplate offers ceramic coated surface, which is corrosion-resistant and easy to clean. The device adopts bluetooth, 2.4G wireless and wired USB connectivity to realize real-time data transmission and precise control, which provides increased flexibility for users. It is compatible with wired or wireless connections. When applying wired connections, the hub controller can control 6 magnetic hotplate stirrers, while for wireless connections, there is no limit on the number of stirrers.
Compare
Add to wishlist
Add to quote
Description
Features

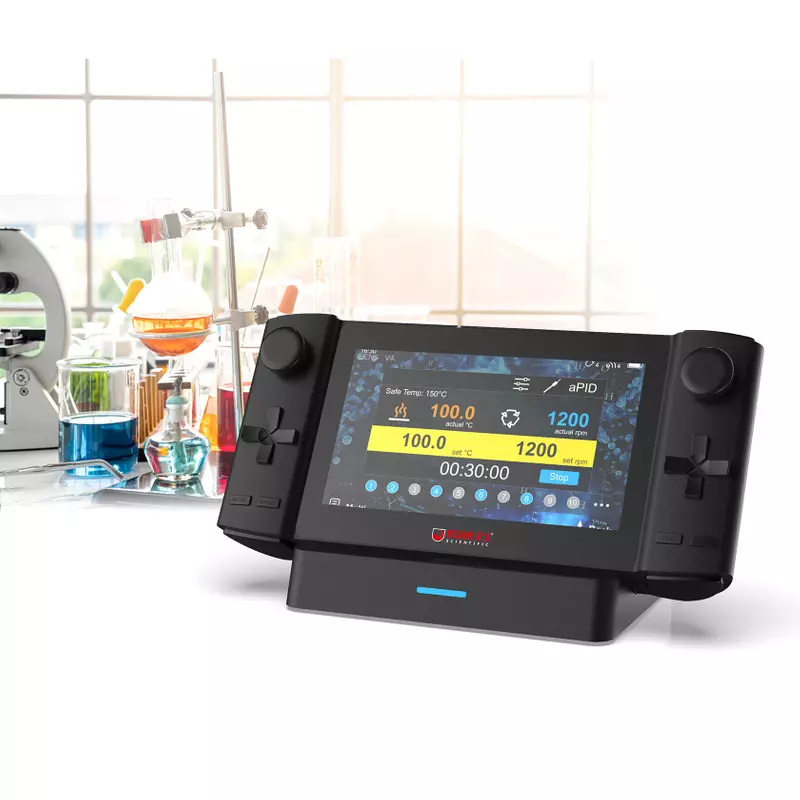

  • The hub controller comes with a 7-inch, high resolution LCD touch screen
  • Temperature, Speed and Run Time for each magnetic hotplate stirrer can be set and adjusted by using the hub controller
  • Bluetooth, 2.4G wireless and wired USB connectivity options allow real-time data transmission and precise control
  • Large capacity 5000mAh battery supports long working hours without the need for frequent charging
  • The maximum hotplate temperature is up to 310°C, and the safety temperature range is 50°C-325°C
  • PID controller ensures rapid heating and accurate temperature control
  • The ceramic coated heating plate is resistant to high temperature, chemical corrosion and is easy to clean
  • Brushless DC motor is maintenance free
  • Automatically identify external temperature sensor PT1000 and transfer to PT1000 operation mode
  • LED display on the hotplate stirrer displays equipment tracking number for easy identification, speed, and temperature
  • The controller adopts magnetic charging, which is convenient and fast
Specifications

Specifications

Dimension

Item Length (mm) Width (mm) Height (mm)
Controller 263 126 40
Charging stand 167 134 92
Magnetic hotplate stirrer 166 166 106

Specifications

MAGNETIC HOTPLATE STIRRERS
Model MS321
Set-up plate material Aluminium alloy with ceramic coating
Set-up plate dimensions Φ5 inches
Heating temperature range Room temp. to 310°C
Speed range 50-1500RPM
Safety temperature 50°C to 325°C
Permissible Ambient Temperature 5-35℃
Speed control accuracy ±1RPM
Temperature control accuracy ±1°C
Time range 99H59min
Maximum stirrer connections Wired connections: 6
Wireless connections: no limit
Motor input 30W
Motor type Brushless DC motor
External temperature sensor Yes
Max. stirring quantity (H₂O) 20L
Power supply 100-110V, 200-240V, 50/60Hz
Stirring bar 55MM
Power switch Yes
Display LED
Dimension 166x166x106mm
HUB CONTROLLER
Display 7-inch touch screen
Rechargeable battery Lithium polymer battery: 7.4V
Charging time 3 hours
Battery capacity 5000mAh
Battery life 8H
Main controller dimension 263x126x40mm
CHARGING STAND
Power supply 200-240/100-120 VAC; 50/60Hz
Power input interface DC port
Wireless effective connection distance 10m
