Temperature Verification Kit for 96-well PCR

Ensure Optimal PCR Performance with Four E’s Temperature Verification Kit

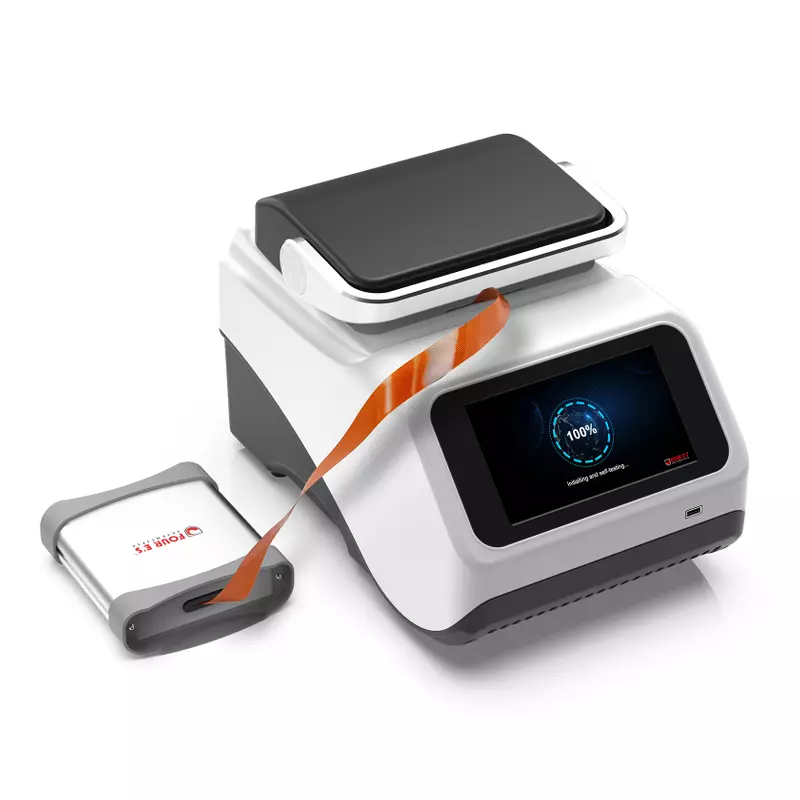

Achieve reliable and consistent PCR results with our advanced temperature verification system. Designed to seamlessly integrate with the Four E’s Optima96 Gradient PCR and OptimaFlex Single-block Gradient PCR for temperature calibration, this system verifies the temperature accuracy and uniformity by utilizing a precision sensor board with 22 sensors. It is also compatible with most 96-well PCR thermolcyclers available on the market for temperature verification.
Compare
Add to wishlist
Add to quote
Description

Features

  • User-Friendly Software: Simplifies the verification process, allowing initiating and monitoring directly from your PC.
  • Quick Verification: Entire process takes less than 15 minutes, reducing downtime and maximizing productivity.
  • In-House Solution: Convenient for labs undergoing compliance audits, eliminating the need to send thermocyclers to third-party testing agencies.
  • Detailed Reporting: Generates a comprehensive PDF report summarizing temperature accuracy and uniformity after each test.
  • Automated Calibration: Enables automated calibration of the Four E’s Optima96 Gradient PCR and OptimaFlex Single-block Gradient PCR via PC software to ensure optimal performance.
  • PCR Verification: Compatible with all 96-well PCR thermocyclers (0.2 mL) on the market.
  • Optional ISO Calibration: Provides ISO calibration services for the sensor board for enhanced quality assurance.

Temperature Verification System - FOUR E's Scientific

Specifications

Specifications

Model TVK096
Measuring Range 0°C – 105°C
Sensor Resolution 0.01°C
Temperature Accuracy ±0.1°C
Sensor Uniformity 0.1°C
Number of Sensors 22
Compatibility (Calibration Four E’s Optima96 Gradient PCR and OptimaFlex Single-block Gradient PCR
Compatibility (Verification) All 96-well PCR thermolcyclers (0.2ml) on the marke
Cable Connection Type (to Thermocycler) Female DB9 (Control Unit) to Male DB9 (Thermocycler)
Cable Connection Type (to PC) USB-B (Control Unit) to USB-A (PC)
Power Supply USB Power (5V DC 500mA)
Control Unit (W x D x H) 15.8 cm x 13.4 cm x 4.2 cm
Sensor Board (W x D x H) 12.1 cm x 8.5 cm x 2.8 cm
Control Unit (g) 410 g
Sensor Board (g) 110 g
Ambient Temperature 15°C – 35°C
Relative Humidity 25% – 75% (non-condensing)
