Fluorometer

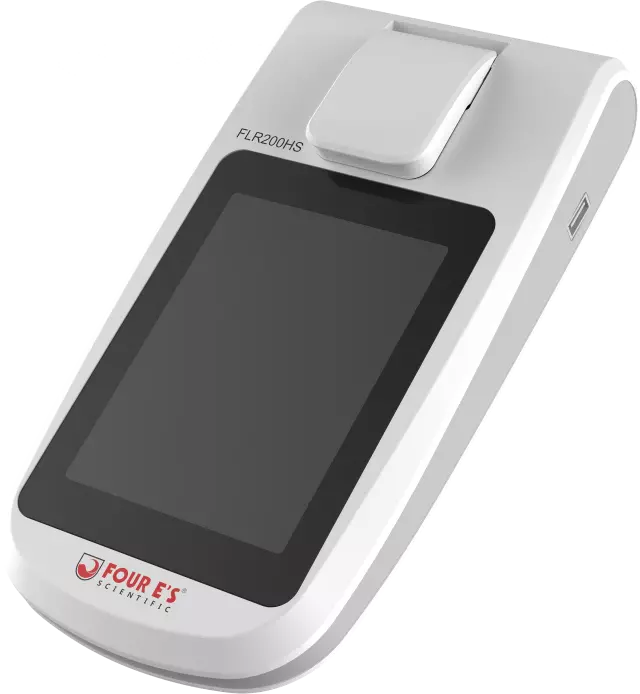

The FLR200HS Fluorometer is a cutting-edge instrument designed to deliver rapid and accurate quantification of DNA, RNA, and proteins. By utilizing advanced fluorescence technology, this device enables researchers to efficiently analyze a wide range of biological samples.

The FLR200HS Fluorometer is a valuable tool for numerous applications in life science research, including
  • Nucleic Acid Quantification: Precise measurement of DNA and RNA concentrations for molecular biology experiments.
  • Protein Quantification: Accurate determination of protein levels for biochemical and cellular studies.
  • NGS Library Preparation: Efficient quantification for quality control of NGS libraries to optimize sequencing workflows.
  • Western Blot Analysis: Quantitative analysis of protein expression levels.
Compare
Add to wishlist
Add to quote
Description

FEATURES

  • Rapid Analysis: Achieve precise measurements in just 2.5 seconds per sample.
  • High Sensitivity: Detect even minute quantities of biomolecules, with a lower limit of 10 pg/µL (original sample concentration) for dsDNA.
  • Minimal Sample Volume: Obtain reliable results using sample volumes as small as 1-20 µL.
  • Versatile Applications: Employ various dyes with pre-configured or custom standard curves to suit diverse experimental needs.
  • Intuitive Interface: The 5.7-inch touchscreen provides a user-friendly experience, simplifying operation.
  • Robust Data Storage: Store up to 10,000 programs and export data conveniently via USB drive.
Specifications

Specifications

Model FLR200HS
Light sources Blue LED (470nm peak)
Red LED (635nm peak)
Excitation filters Blue (450 – 490nm)
Red (615 – 655nm)
Emission filters Green (530 – 570nm)
Red (680 – 720nm)
Detectors Photodiodes: measuring range 310 – 1000nm
Calibration type 2 or 3-point standard
Throughput 1
Sample volume 1-20μL
Sample tube 0.5mL PCR tube
Measurement time 2.5 seconds/sample
Dynamic range (dsDNA) 5 orders of magnitude
Limit of detection <10pg/µl
(dsDNA original sample concentration)
Stability <1.5%
Repeatability <1.5%
Display 5.7-inch touchscreen
External ports 2×USB-A
Storage capacity 4GB (10,000 programs)
Power supply 100-240VAC, 50/60Hz
Power input 12V 3A
Operating temperature 5-40°C
Operating humidity 20-80%
Weight 0.7kg
Size (W x D x H) 135 × 245 × 50mm



Accessories

Accessories

Fluorometer Reagents

Part Number Description Quantitation Range Initial Sample Concertration Number of Assays
FLR-dsDNA 1X dsDNA HS Assay Kit 0.5-100ng 0.025-100ng/μL 100T
FLR-ssDNA 1X ssDNA HS Assay Kit 0.5-200ng 0.025-200ng/μL 100T
FLR-RNA RNA HS Assay Kit 0.5-200ng 0.025-200ng/μL 100T
