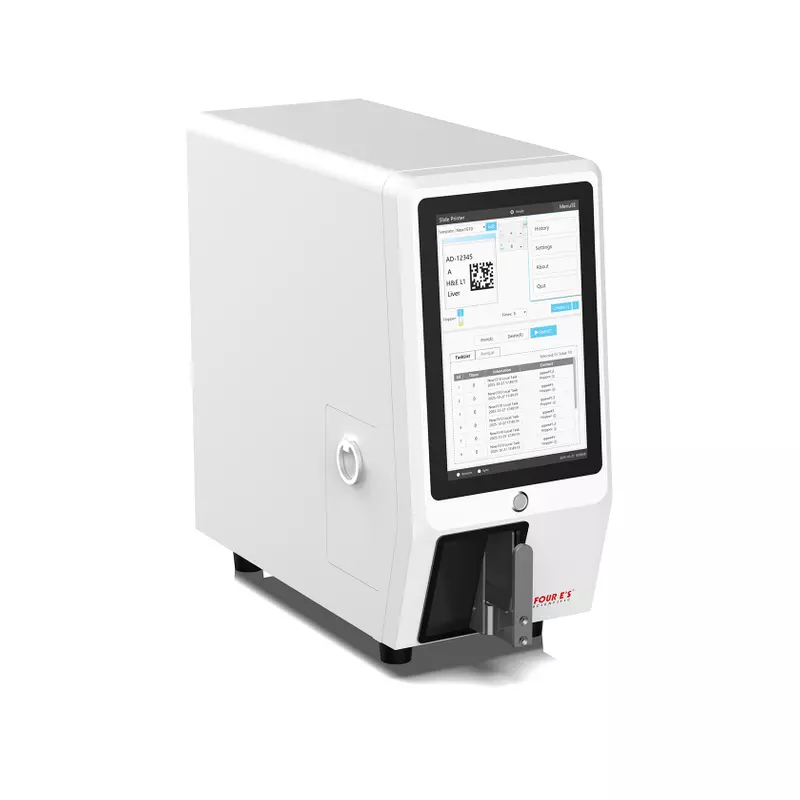

UV Microscope Slide Printer (Single Hopper)

The Ultraviolet Laser Microscope Slide Printer represents the next generation of slide printers. This advanced and easy to use printer can print directly on slides without using ink or consumables.

The ultra-fast laser can print text, symbols, and barcodes on slides in under three seconds. The large 10-inch color touch screen allows for configuration of the print template and easy data entry. The printer is LIMS and HIMS compatible for easy integration.
Compare
Add to wishlist
Add to quote
This product is already in your quote request list.
Browse the list
Description

Features

  • Next generation Ultraviolet Laser Print Technology for quick and consumable-free printing
  • Large 10-inch color touchscreen for data entry and print configuration
  • Quick and quiet print capabilities with slides being printed in under 3 seconds
  • Removable input hopper and collecting hopper optimize laboratory workflows
  • Built-in scanner for quick reading of barcodes and data entry
  • Built-in sensors detect proper slide tray installation and alert when trays are full
  • Easily build and configure new print templates to suit your laboratory sample needs
  • Connects to most LIMS and HIMS systems to print directly from the network
  • Integrated software supports batch import of slide data for efficient, high-volume printing
  • Flexible operation as a standalone system or seamless integration with a Tissue Cassette  Printer or Laboratory Information Management System (LIMS)
  • UV printing is not susceptible to smudging from solvents, the print is physically etched into  the slide
Specifications

Specifications

Model UVP101001
Pinter Type Long Life UV Laser
Capacity 100 slides
Removable Hopper Yes, 1 Hopper
Printing Capabilities Text, Symbols, Barcodes, QR Code Multiple formats of Linear and 2D Barcodes
Printing resolution 2500dpi
Print Speed and Consumables <3 seconds, no consumables required
Interface and Connections 10″Color Touch Sareen, 2×Ethernet, 4×USB, 1×VGA Connection Types 1×COM, 1×HDMI, Built-in Barcode Scanner
Output Storage Solutions Around 50 slides
LIMS/HIMS Compatible Yes, all systems
Operation Modes Standalone, Batch Printing Software,  Connected to Cassette Printer, LIMS/HIMS Controlled
Dimension(LxWxH) 437 x 200 x 445mm
