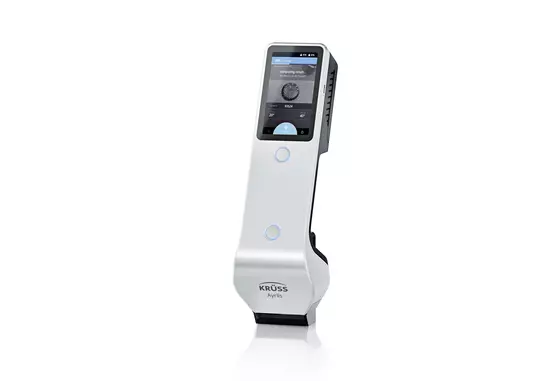

Getting rid of any user intervention and result interpretation whatsoever, Ayríís, our portable contact angle instrument, uses groundbreaking technology for perfectly reliable QC checks of wettability. With just one click and in seconds, the 3D Contact Angle of water is measured and auto-validated with a simple passed/failed message using preset quality limits. The highly advanced 3D drop projection technique of Ayríís provides automatic self-checking of consistency and plausibility of each result. As a mobile, stand-alone instrument with easy-to-exchange rechargeable batteries and prefilled cartridges, Ayríís is prepared to operate 24/7 on your production site.
Ayríís
Description
SPECIFICATIONS
SPECIFICATIONS
Dosing System
| Syringe Dosing | water single pressure dosing |
|---|---|
| Drop deposition (syringe dosing) | software-controlled |
| Syringes, volume | prefilled water cartridge (4 mL) |
| Resolution (syringe dosing) | 0.1 μL |
| Speed (syringe dosing) | fixed |
Camera system
| Types | stereo camera |
|---|
Camera system (standard)
| Connection | MIPI CSI-2 |
|---|---|
| Performance | 2 cameras with 50 fps at 1024 x 1024 px each |
Data output
| Types | Microsoft Excel (xml format) via Ethernet |
|---|
Optics (standard)
| Focus | fixed focus |
|---|---|
| Zoom | fixed focal length |
Illumination
| Types | 2 lasers + 90 high power LEDs |
|---|---|
| Wave length, dominant | white |
Software
| Software type | integrated user interface |
|---|---|
| Software languages | English |
| Software modules | Contact angle (included) |
Sessile drop
| Results | contact angle |
|---|---|
| Range | 0 to 140° |
| Resolution | 0.1° |
| Accuracy | 2° |
| Models | 3D Contact Angle |
| Types | static |
Sample dimensions
| Maximum sample space | ∞ × ∞ × ∞ (W × D × H) |
|---|
Instrument dimensions
| Footprint | 58 mm x 51 mm (W x D) |
|---|---|
| Height | 290 mm |
| Weight (without accessories) | 1.15 kg |
Environment
| Operating temperature | 10 °C to 40 °C |
|---|---|
| Storage temperature | 5 °C to 45 °C |
| Humidity | without condensation |
Interfaces
| PC | USB 3.0 |
|---|
Housing and peripherals
| Compartment | aluminum |
|---|---|
| Touch display | integrated color IPS display (480 x 800 px, size 4”) |
Power supply
| Voltage | 15 V |
|---|---|
| Battery runtime | 4 h |
| Charging power | max. 30 W |
