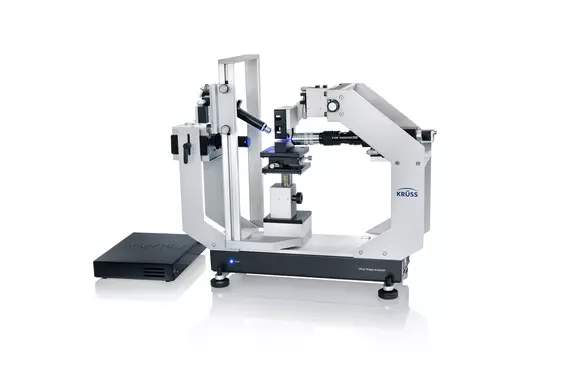

Determine the wettability of very small surfaces using standard test liquids – or find out how microdroplets of your individual formulation, for example an inkjet printing ink, wet the sample. The Drop Shape Analyzer – DSA30M Flexible Liquid dispenses picoliter drops of the liquids and determines the contact angle as a relevant measured variable when wetting and coating processes on tiny surfaces are to be optimized.
DSA30M Flexible Liquid
Micro wetting analysis with almost any liquid
Description
SPECIFICATIONS
SPECIFICATIONS
Dosing System
| Syringe Dosing | software-controlled |
|---|---|
| Syringes, volume | 150 µL |
| Resolution (syringe dosing) | – |
| Minimum drop volume | 10 pL |
| Speed (syringe dosing) | depends on the viscosity of the liquid |
Camera system (standard)
| Model | Camera CF04 |
|---|---|
| Connection | USB 3.0 |
| Resolution | 1920 × 1200 px |
| Frame rate | 2300 fps |
| Dark noise | 7 electrons |
| Dynamic range | 73 dB |
Optics (standard)
| Focus | manual |
|---|---|
| Zoom | 6.5× zoom, manual & 20× zoom micro optics |
| View angle | ±3° |
| Field of view | CF04: 3.2 mm × 3.2 mm to 18.5 mm × 18.5 mm |
| Resolution of optics | CF04: 2.5 to 16.2 μm |
Illumination
| Types | high power monochromatic LED with integrated strobe light |
|---|---|
| Wave length, dominant | 460 nm |
| Field of light | Ø 12 mm |
Stages
| Control | x-axis: manual y-axis: manual z-axis: manual |
|---|---|
| Length | x-axis: 30 mm y-axis: 50 mm z-axis: 45 mm |
| Resolution | x-axis: 20 mm/turn y-axis: 4 mm/turn z-axis: 16 mm/turn |
Camera system (optional)
| Model | High Speed Camera CF06 |
|---|---|
| Connection | USB 3.0 |
| Resolution | 640 × 480 px |
| Frame rate | 3400 fps |
| Dark noise | 10.5 electrons |
| Dynamic range | 56.6 dB |
Optics (optional)
| Focus | manual |
|---|---|
| Zoom | 6.5× zoom, manual & 20× zoom micro optics |
| View angle | ±3° |
| Field of view | CF06: 1.4 mm × 1.0 mm to 8.1 mm × 6.0 mm |
| Resolution of optics | CF06: 2.1 to 13.3 μm |
Observation optics
| Field of view | CF04: 2.3 mm × 2.3 mm |
|---|---|
| Resolution | CF04: 2 μm |
Software
| Software type | ADVANCE |
|---|---|
| Software languages | Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish |
| Software modules | Contact angle (recommended)
Surface free energy of solids (recommended) Adhesion Analysis (optional) Remote Control API (optional) |
Sessile drop
| Results | contact angle |
|---|---|
| Range | 0 to 180° (software-based) |
| Resolution | 0.01° (software-based) |
| Accuracy | 0.3° (instrument-based) |
| Models | conic section polynomial circle Young-Laplace height-width |
| Types | static dynamic |
Surface free energy of solids
| Results | surface free energy polar & disperse part acid & base part H-bond part |
|---|---|
| Models | equation of state Zisman Fowkes Wu Owens-Wendt-Rabel-Kaelble extended Fowkes acid-base theory |
Sample dimensions
| Maximum sample space | 320 mm × ∞ × 275 mm (W × D × H (without axes)) |
|---|
Instrument dimensions
| Footprint | 610 mm × 250 mm (W × D) |
|---|---|
| Height | 610 mm |
| Weight (without accessories) | 10 kg |
Environment
| Operating temperature | 10 to 40 °C |
|---|---|
| Humidity | without condensation |
Interfaces
| PC | USB 3.0 |
|---|
Housing and peripherals
| Levelling | yes |
|---|
Power supply
| Voltage | 88 to 264 V |
|---|---|
| Power consumption | 100 W |
| Frequency | 50 to 60 Hz |
Temperature measurement
| Range | -50 to 400 °C |
|---|---|
| Resolution | 0.1 °C |
| Precision | ±0.1 °C |
| Accuracy | 1/3 DIN B (±0.1 °C at 0 °C to ±0.8 °C at 400 °C) |
| Locations | sample stage chamber cuvette |
| External sensor | 2 connectors (PT100) |
Temperature control
| Equipment | Optional: – temperature-controlled sample stage |
|---|---|
| Type of temperature control | liquid |
| Range of temperature control | -10 to 130 °C |
| Tempered area | 26 mm × 90 mm (W × D) |
| Resolution | 0.1 °C |
| Flow-through thermostat | with liquid |
