The wettability of very small surfaces can have a great influence on product quality, e.g. for contact points on circuit boards or in microfluidics. The DSA100M Drop Shape Analyzer is the premium solution for accurately positioning and analyzing drops in the picoliter range. The resulting contact angle is exactly the information you need for optimizing wetting and coating processes on very small surfaces.

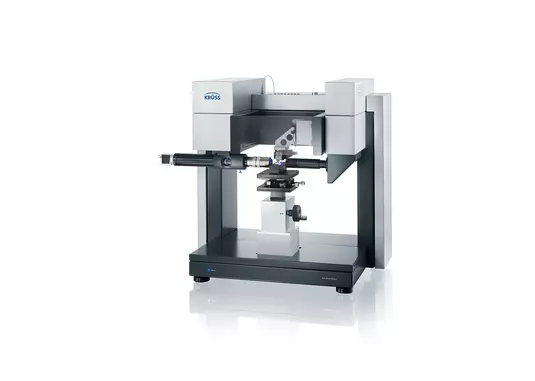

DSA100M
The premium solution for wettability analysis of microscopically small surfaces
Description
SPECIFICATIONS
SPECIFICATIONS
Dosing System
| Syringe Dosing | software-controlled |
|---|---|
| Syringes, volume | 4 mL |
| Minimum drop volume | 20 pL |
| Speed (syringe dosing) | 2 m/s |
Camera system (standard)
| Model | Camera CF04 |
|---|---|
| Connection | USB 3.0 |
| Resolution | 1920 × 1200 px |
| Frame rate | 2300 fps |
| Dark noise | 7 electrons |
| Dynamic range | 73 dB |
Optics (standard)
| Focus | fixed focus |
|---|---|
| Zoom | 6.5× microscope zoom, manual |
| View angle | ±4° |
| Field of view | CF04: 0.2 mm × 0.2 mm to 0.9 mm × 0.9 mm (7× to 45×) |
| Resolution of optics | CF04: 0.1 to 0.8 μm |
Illumination
| Types | high power monochromatic LED |
|---|---|
| Wave length, dominant | 460 nm |
| Field of light | Ø 12 mm |
Stages
| Control | x-axis: manual y-axis: manual z-axis: manual |
|---|---|
| Length | x-axis: 30 mm y-axis: 50 mm z-axis: 45 mm |
| Resolution | x-axis: 20 mm/turn y-axis: 4 mm/turn z-axis: 1 mm/turn |
Camera system (optional)
| Model | High Speed Camera CF06 |
|---|---|
| Connection | USB 3.0 |
| Resolution | 640 × 480 px |
| Frame rate | 3400 fps |
| Dark noise | 10.5 electrons |
| Dynamic range | 56.6 dB |
Optics (optional)
| Focus | fixed focus |
|---|---|
| Zoom | 6.5× microscope zoom, manual |
| View angle | ±4° |
| Field of view | CF06: 0.1 mm × 0.1 mm to 0.4 mm × 0.3 mm (7× to 45×) |
| Resolution of optics | CF06: 0.1 to 0.7 μm |
Observation optics
| Field of view | CF04/CF04C (color): 2.3 mm × 2.3 mm |
|---|---|
| Resolution | CF04/CF04C (color): 2 μm |
Software
| Software type | ADVANCE |
|---|---|
| Software languages | Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish |
| Software modules | Contact angle (recommended)
Surface free energy of solids (recommended) Adhesion Analysis (optional) Remote Control API (optional) |
Sessile drop
| Results | contact angle |
|---|---|
| Range | 0 to 180° (software-based) |
| Resolution | 0.01° (software-based) |
| Accuracy | 0.3° (instrument-based) |
| Models | conic section polynomial circle Young-Laplace height-width |
| Types | static dynamic |
Surface free energy of solids
| Results | surface free energy polar & disperse part acid & base part H-bond part |
|---|---|
| Models | equation of state Zisman Fowkes Wu Owens-Wendt-Rabel-Kaelble extended Fowkes acid-base theory |
Sample dimensions
| Maximum sample space | 320 mm × ∞ × 275 mm (W × D × H (without axes)) |
|---|
Instrument dimensions
| Footprint | 555 mm × 375 mm (W × D) |
|---|---|
| Height | 490 mm |
| Weight (without accessories) | 24 kg |
Environment
| Operating temperature | 10 to 40 °C |
|---|---|
| Humidity | without condensation |
Interfaces
| PC | USB 3.0 |
|---|
Housing and peripherals
| Levelling | yes |
|---|
Power supply
| Voltage | 88 to 264 V |
|---|---|
| Power consumption | 100 W |
| Frequency | 50 to 60 Hz |
Temperature measurement
| Range | -50 to 400 °C |
|---|---|
| Resolution | 0.1 °C |
| Precision | ±0.1 °C |
| Accuracy | 1/3 DIN B (±0.1 °C at 0 °C to ±0.8 °C at 400 °C) |
| Locations | sample stage chamber cuvette |
| External sensor | 2 connectors (PT100) |
Temperature control
| Equipment | Optional: – temperature-controlled sample stage |
|---|---|
| Type of temperature control | liquid |
| Range of temperature control | -10 to 130 °C |
| Tempered area | 26 mm × 90 mm (W × D) |
| Resolution | 0.1 °C |
| Flow-through thermostat | with liquid |
