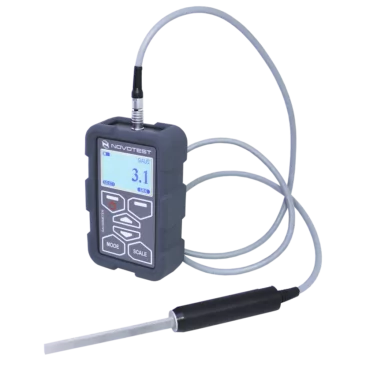

Main advantages and functions of Magnetometer NOVOTEST MF-1M:
STATIC (DC) MAGNETIC FIELD
The main purpose of the device is to measure the parameters of a static magnetic field – intensity (induction), as well as its gradient. Using a transverse probe, the user can measure the residual magnetization of the material after magnetic particle inspection, the level of the magnetic component of industrial interference, as well as the magnetic induction of a variety of devices, components and products.
ALTERNATING (AC) AND PULSED MAGNETIC FIELDS
The device allows user to measure the parameters of an alternating magnetic field – values of intensity (induction), as well as the parameters of single pulses of a magnetic field – peak values of intensity (induction).
UNITS OF MEASUREMENT
The magnetometer can display the measured value in units of Ampere/Centimeter (A/cm), Gauss (Gs) and Tesla (mT). That is why sometimes such devices are called Teslameters or Gaussmeter gauges. Also in the device there is a conditional CODE scale, which allows user to assess the change in the magnetic fields of without reference to the scale.
THRESHOLD EXCEEDANCE ALARM FUNCTION
The device has the function of displaying the signal like a graph, which allows the user to monitor the change in the magnetic field strength by scanning the product. Also, in this operating mode, the user can set thresholds for the limiting values of the measured parameters, when the grapf break this threshold the device emits a signal.
VARIOUS PROBES
The device can be equipped with probes for operation in different ranges (± 100G, ± 1000G, ± 3000G), the narrower the range, the higher the measurement accuracy. The instrument is equipped with a transverse probe as standard, but axial probes can be made to order.
DESIGN
The device is sealed and can be used in conditions of high humidity, and the silicone case for the electronic unit makes the device shockproof. Also, the device is not demanding on the temperature of the operating environment, it is possible to use the device in the temperature range from -20 to + 40 ° C.
ARCHIVE OF MEASUREMENTS AND PC SOFTWARE
The device has the ability to create a measurement archive that can be transferred to a PC using special software.
