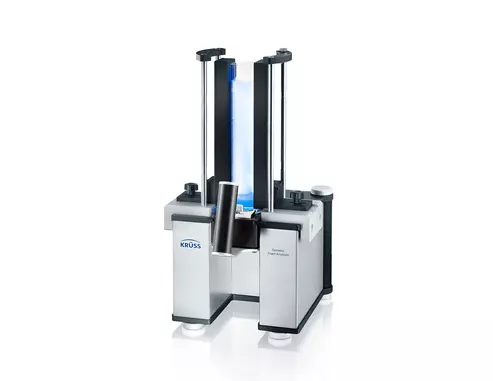

Many questions about foam, one universal approach: The DFA​100 Dynamic Foam Analyzer measures the foamability of liquids and the stability of quickly decaying or long lasting foam based on reproducible foaming and height detection. With optional modules operating in parallel, it also measures the liquid content or analyzes the foam structure with regard to bubble size and distribution. The DFA100 supports you in optimizing foam-forming products or helps you to avoid unwanted foam formation.
DFA100
The universal instrument for all aspects of liquid foam
Description
SPECIFICATIONS
SPECIFICATIONS
Software
| Software type | ADVANCE |
|---|---|
| Software languages | Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish |
| Software modules | Foam analysis (recommended)
Remote Control API (optional) |
Measurement specifications
| Analyzed foam characteristic | foamability and foam stability |
|---|---|
| Results | foam height liquid height total height foam capacity maximum foam density expansion rate foam half life time drainage half life time sample temperature |
Sample dimensions
| Min. recommended sample volume | 50 mL with 40 mm diameter column 20 mL with 20 mm diameter column |
|---|
Instrument dimensions
| Footprint | 245 mm × 275 mm (W × D) |
|---|---|
| Height | 460 mm |
| Weight (without accessories) | 9 kg |
Environment
| Operating temperature | 15 to 30 °C |
|---|---|
| Humidity | without condensation |
Interfaces
| PC | 1× USB 2.0 |
|---|
Power supply
| Voltage | 100 to 240 V |
|---|---|
| Power consumption | 30 W |
| Frequency | 50 to 60 Hz |
Temperature measurement
| Sensor | PT100 |
|---|---|
| Range | 4 to 90 °C |
| Resolution | 0.1 °C |
| Precision | ±0.1 °C |
| Accuracy | 1/3 DIN B (±0.1 °C at 0 °C / ±0.8 °C at 400 °C) |
| Locations | inside sample liquid |
| External sensor | optional |
Temperature control
| Type of temperature control | optional: double-walled glass column |
|---|---|
| Range of temperature control | 4 to 90 °C (additional thermostat needed) |
Accessories
| Glass columns | 20 and 40 mm diameter, temperature control option |
|---|---|
| Filter plates for sparging | diameter: 14 and 30 mm |
| Filter plate porosities | G1: nominal maximum pore size: 100 to 160 μm G2: nominal maximum pore size: 40 to 100 μm G3: nominal maximum pore size: 16 to 40 μm G4: nominal maximum pore size: 10 to 16 μm |
| Material of columns and frits | borosilicate glass (norm: ISO 4793) |
| Material of sealings | silicone and FKM |
Camera system
| Diameter of minimum detectable bubble | – |
|---|---|
| Mean field of view size | – |
| Focus | – |
Camera system (standard)
| Connection | – |
|---|---|
| Performance | – |
Illumination
| Types | LED |
|---|---|
| Wave length, dominant (height detection) | 469 nm (optional IR: 850 nm) |
Electrodes
| Material | – |
|---|---|
| Highest sensor position | – |
| Measured entity | – |
| Theoretical measurement range | – |
Operating system
| Internal gas flow rate | 0.2 to 1 L/min |
|---|---|
| External gas flow rate | 0.05 to 1 L/min |
| Approved gases | air nitrogen carbon dioxide |
| Approved pressure | 5 ± 0.5 bar |
| Approved temperature | 4 to 90 °C |
| Stirring speed | up to 8000 rpm |
Line sensor
| Sensor resolution | 1728×1px |
|---|---|
| Spatial resolution | 200 dpi | 0.125 mm |
| Temporal resolution | 20 fps |
| Scanning length | 216 mm |
