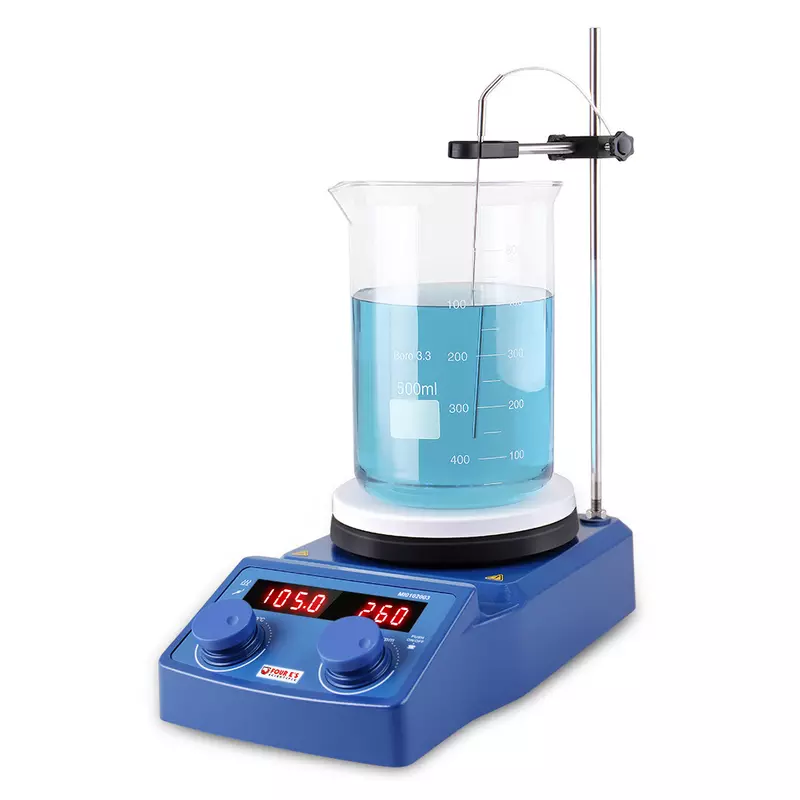

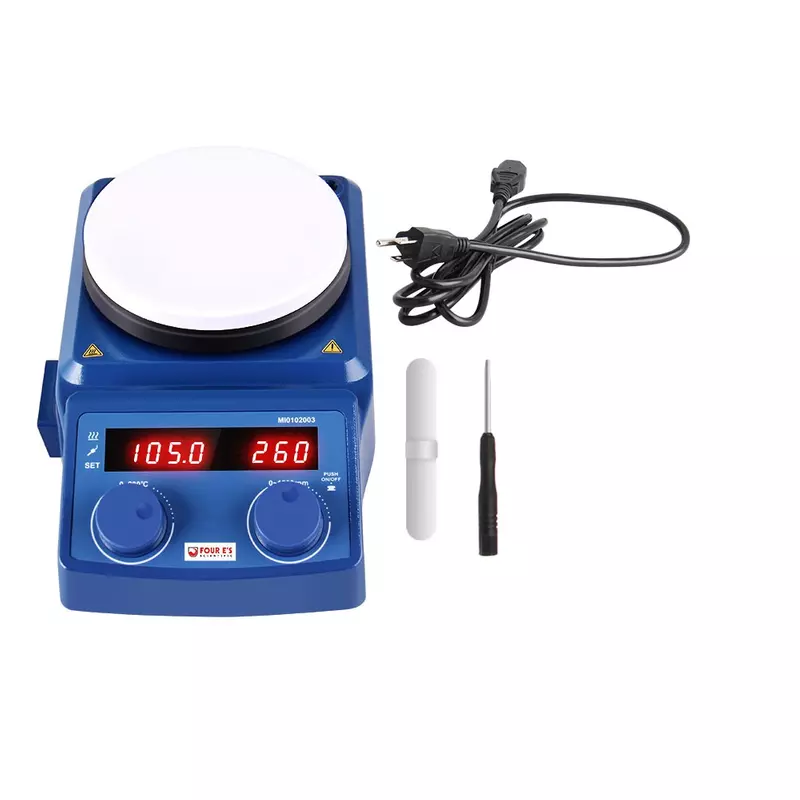

5 Inch Magnetic Hotplate Stirrer
5 Inch Magnetic Hotplate Stirrer
Back to products
Mini Centrifuge
Mini Centrifuge

5 Inch Magnetic Hotplate Stirrer (Economic Version)

FOURE E’s Magnetic Hotplate stirrers provides excellent stirring performance and high temperature accuracy. It comes with a ceramic coated stainless-steel hotplate which is durable, chemical resistant, easy to clean and allows for optimum heat transfer. The enclosed heating plate design reduces risks of liquid splashing into the equipment, and the compact design makes it an ideal benchtop instrument for labs. Optimized PID program control enables temperature and speed control with high accuracy. An external temperature probe PT1000 is available for applications that require precise temperature control.The Special plastic casing is high temperature resistant and strong flame-retardant. The large, LED display enables easy speed and temperature setting and monitoring and also has a hot surface warning when the hot plate temperature is above 50°C.

Compare
Add to wishlist
Add to quote
Description

Typical Applications:

  • Widely used in medical, biological engineering, chemistry, medicine, food and other research fields. It is a necessary routine instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory.

Features:

  • LED digital display for easy reading
  • Special plastic casing is high-temperature resistant and strong flame-retardant
  • Temperature is up to 280°C and the safety temperature is 50-320°C
  • Stainless steel with ceramic coated hotplate allows for immediate heat transfer
  • 3D digital wheel operation to adjust the speed and temperature
  • Automatically identifies temperature sensor PT1000 and transfer to PT1000 operation mode
Specifications

Specifications

Model MI0102003
Stirring positions 1
Set-up plate dimensions [mm] Ø 135
Set-up plate material Stainless Steel with ceramic coated
Motor type DC motor
Max. stirring quantity [H₂O, L] 5
Max. stirring bar [ L x Φ , mm] 55*10
Motor rating output [W] 1.4
Speed range [rpm] 100-1500
Speed display LED
Heating output [W] 600
Heating temperature range Room temp.-280°C
Temperature display LED
Temperature display resolution 0.1
Safety temperature [°C] 50-320
External temperature sensor /
Temperature control accuracy with external temperature sensor ±1
Hot surface warning 50°C
Permissible ambient temperature [°C] 5 – 40
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 42
Voltage [VAC] 200-240/100-120
Frequency [Hz] 50/60
Power [W] 630

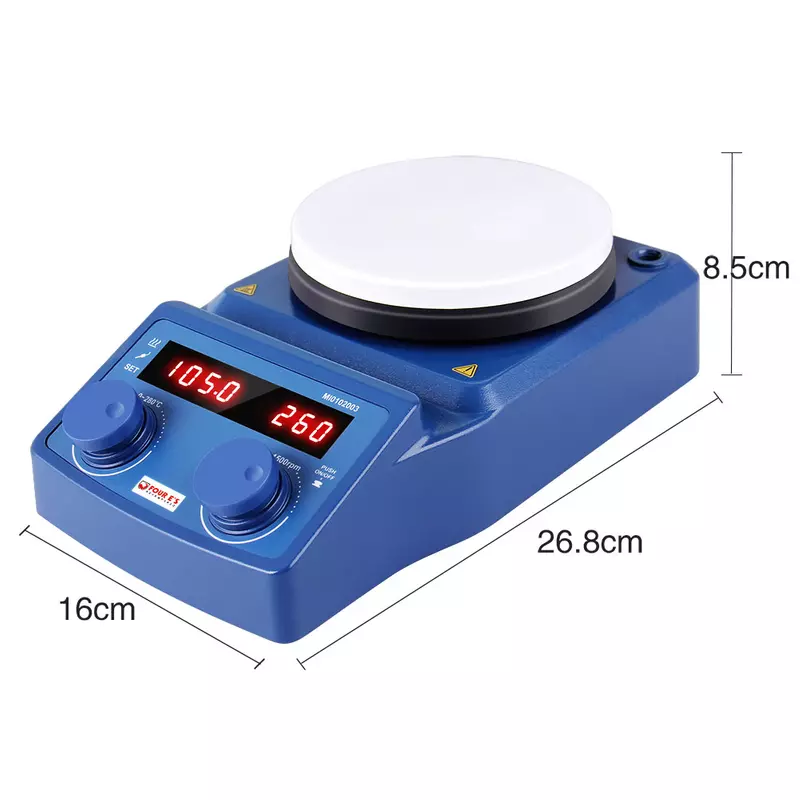

Dimensions [W x D x H, mm] 268 x 160 x 85
Weight [kg] 1.8
