Home Shop 4esci 5 Inch Magnetic Hotplate Stirrer
Mini Dry Bath Incubator
Mini Dry Bath Incubator
Back to products

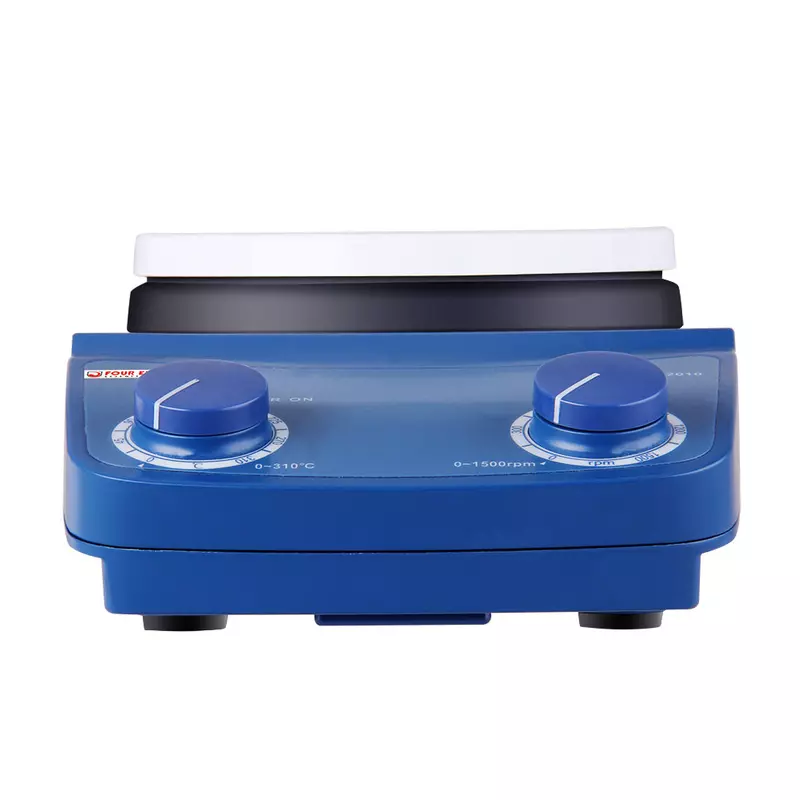

5 Inch Magnetic Hotplate Stirrer (Economic Version)
5 Inch Magnetic Hotplate Stirrer (Economic Version)

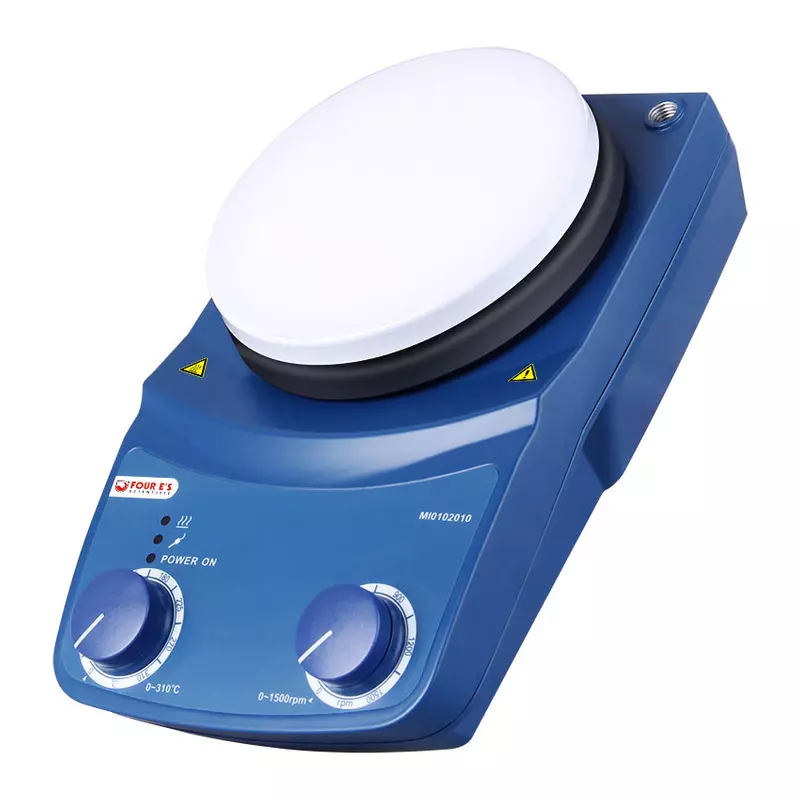

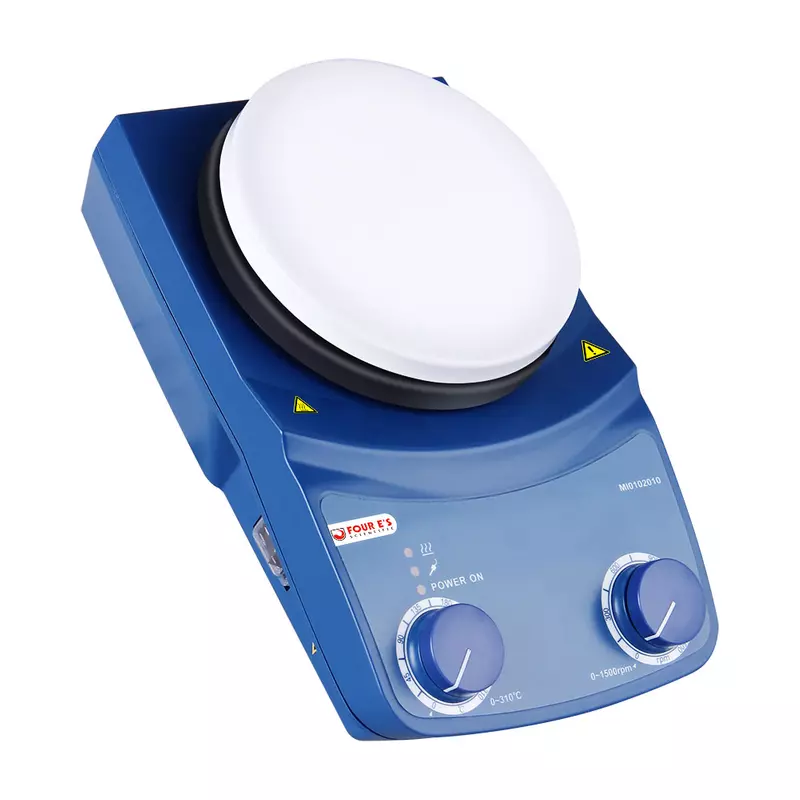

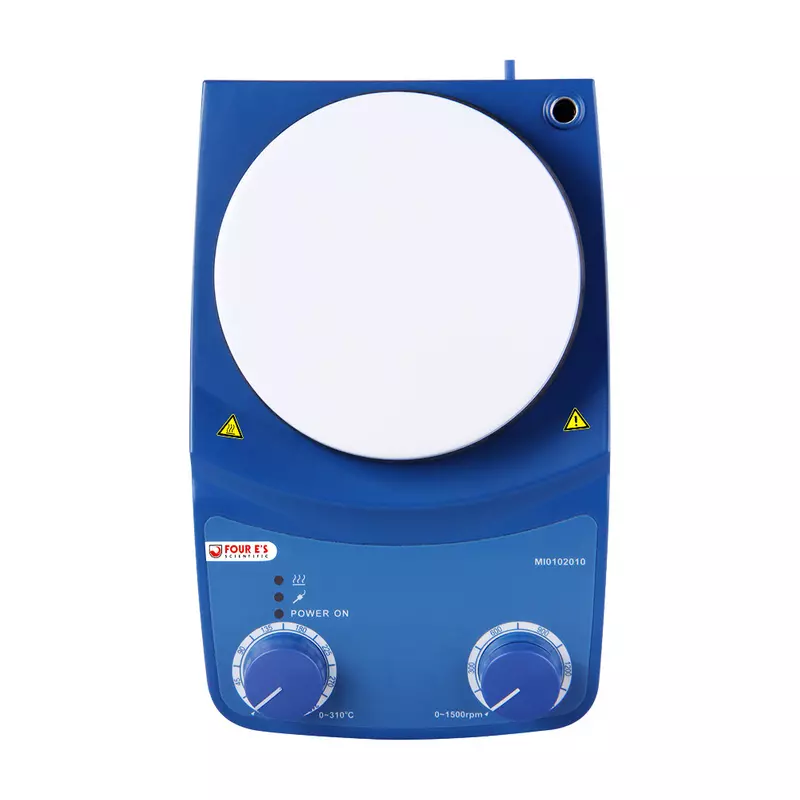

5 Inch Magnetic Hotplate Stirrer

FOURE E’s Magnetic Hotplate stirrers provides excellent stirring performance and high temperature accuracy. It comes with a ceramic coated stainless-steel hotplate which is durable, chemical resistant, easy to clean and allows for optimum heat transfer. The enclosed heating plate design reduces risks of liquid splashing into the equipment, and the compact design makes it an ideal benchtop instrument for labs. Optimized PID program control enables temperature and speed control with high accuracy. Fully enclosed alloy casing provides high temperature resistance, excellent heat dissipation and chemical resistance.

Compare
Add to wishlist
Add to quote
This product is already in your quote request list.
Browse the list
Description

Typical Applications:

  • Widely used in medical, biological engineering, chemistry, bio-pharmaceuticals, food and other research fields. It is a necessary instrument for stirring and mixing various reagents, solutions and chemical substances in biological laboratory.

Features:

  • Enclosed heating plate design reduces the risk of liquid splashing into the equipment
  • 3D digital wheel adjustment of speed and temperature
  • Temperature is up to 310°C and the safety temperature is 50-325°C
  • Brushless DC motor is maintenance-free and explosion-proof
  • Stainless Steel with ceramic coated heating plate allows for optimum heat transfer and easy to clean
  • High safety and strong stirring performance
  • Optimized PID program control provides extremely high accuracy of temperature and speed
  • Double internal temperature sensor PT1000
  • Hot surface warning to prevent burns
Specifications

Specifications

Model MI0102010
Stirring positions 1
Set-up plate dimensions [mm] Ø 135
Set-up plate material Stainless Steel with ceramic coated
Motor type Brushless DC motor
Max. stirring quantity [Hâ‚‚O, L] 20
Max. stirring bar [ L x Φ , mm] 55*10
Motor rating output [W] 5.5
Speed range [rpm] 50-1500
Speed display Scale
Heating output [W] 600
Heating temperature range Room temp.-310°C
Temperature display Scale
Safety temperature [°C] 50-325
External temperature sensor /
Temperature control accuracy with external temperature sensor /
Hot surface warning 50°C
Permissible ambient temperature [°C] 5 – 40
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 42
Voltage [VAC] 200-240/100-120
Frequency [Hz] 50/60
Power [W] 650
Dimensions [W x D x H, mm] 250 x 148 x 85
Weight [kg] 1.9



Shipping & Delivery
Category: 4esci
Share:

Related products

COâ‚‚ Incubator

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

Fluorometer

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

Handheld Rotor-Stator Homogenizer

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

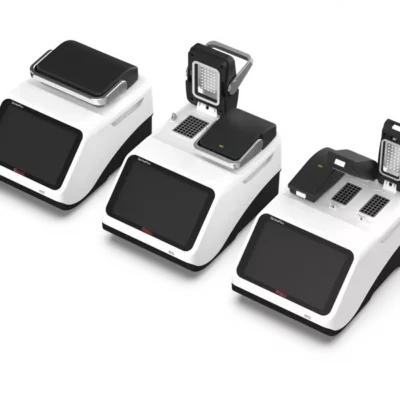

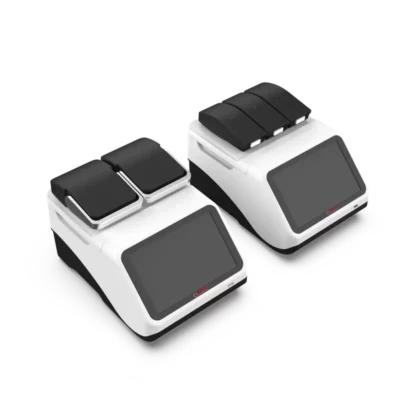

OptimaFlex Multi-Block Gradient PCR System

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

Paraffin Wax Trimmer

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

Per4mance Fully Autoclavable Adjustable Volume Pipette

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

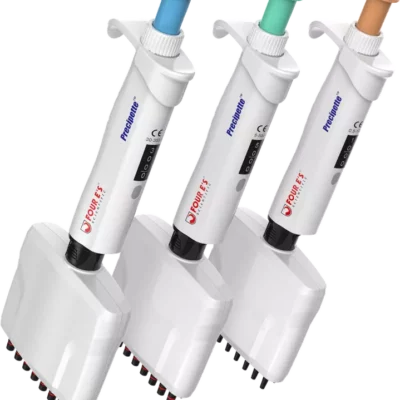

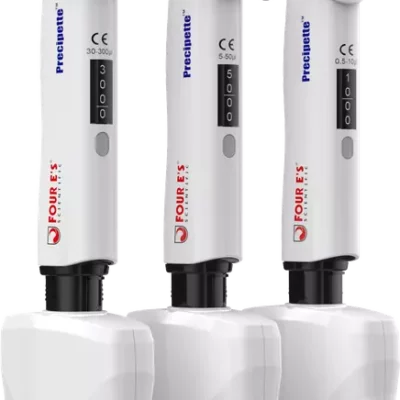

Precipetteâ„¢ 8-Channel Adjustable Volume Pipette

4esci
Read more
Add to quote
This product is already in your quote request list.
Browse the list
Compare
Quick view
Add to wishlist

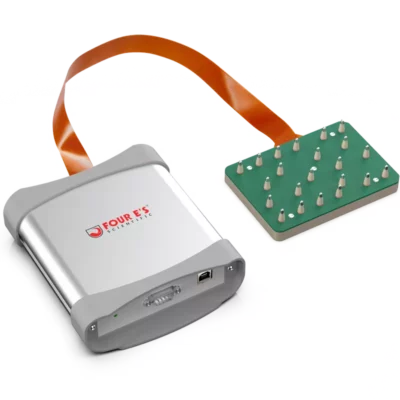

Temperature Verification Kit for 96-well PCR
