Diaphragm Vacuum Pump

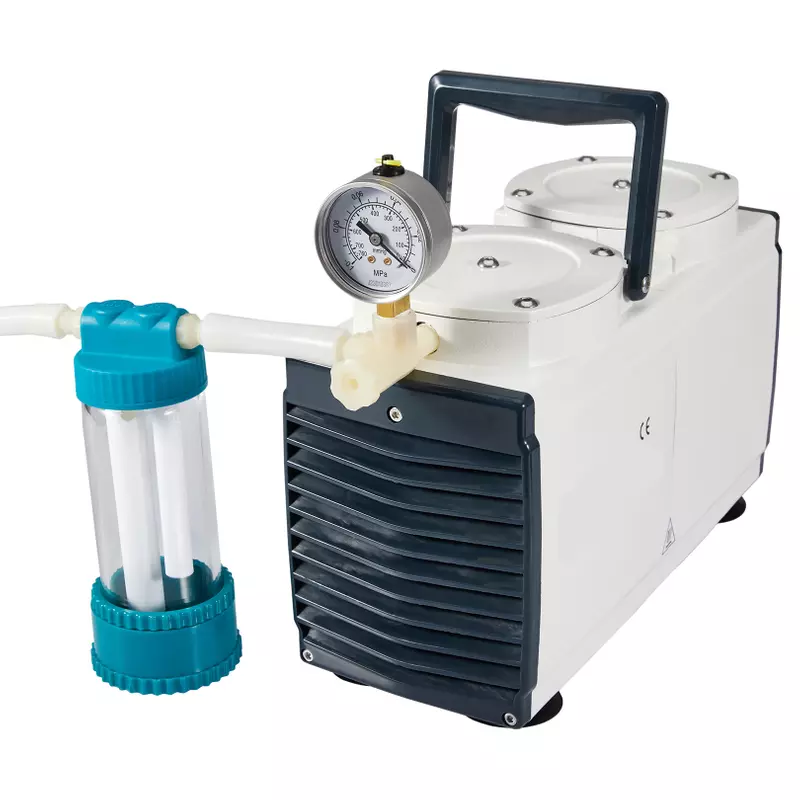

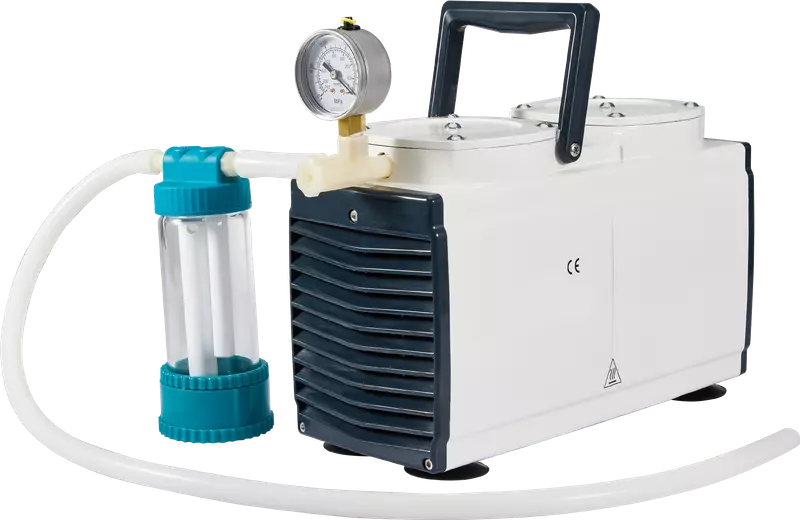

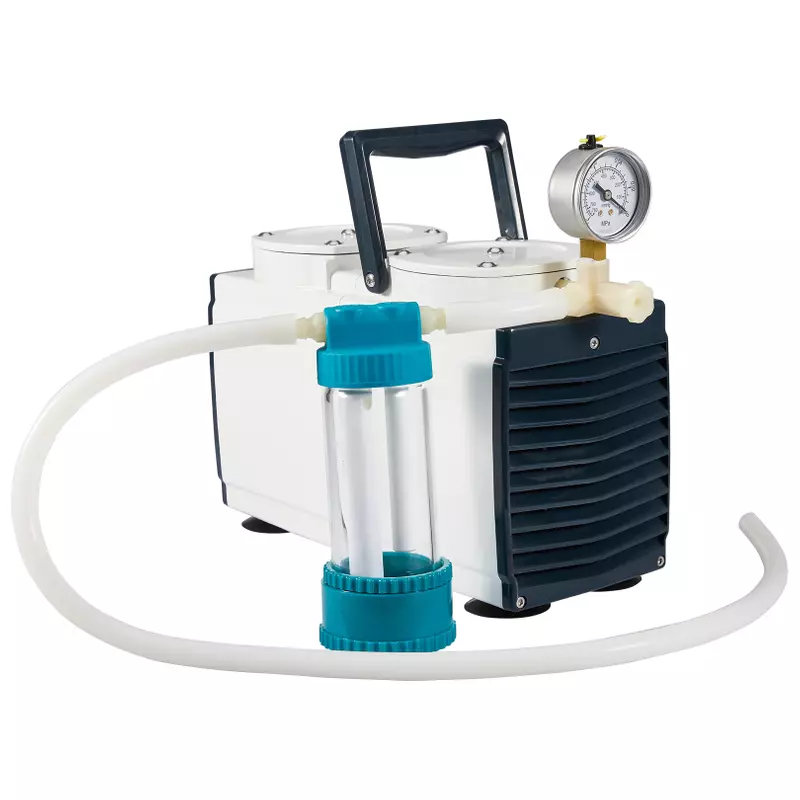

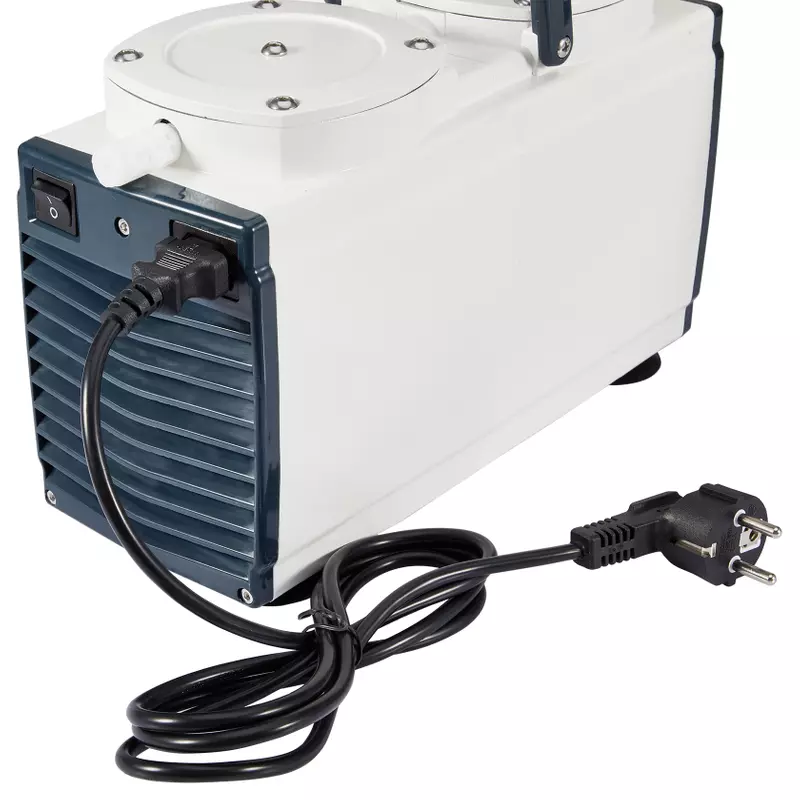

Diaphragm Vacuum Pump features oil-free pumping, low noise level, high efficiency and long lifespan. This diaphragm pump is an ideal laboratory equipment for vacuum filtration, vacuum distillation, rotary evaporation, vacuum drying, centrifugal acceleration, solid-phase extraction, and other application requiring chemical resistance.
Compare
Add to wishlist
Add to quote
This product is already in your quote request list.
Browse the list
Description

Features

  • This highly efficient vacuum pump works without any medium like oil, and thus cause no pollution. Inlet Filters are installed to prevent contamination and ensure clean air.
  • Advanced technology & materials are adopted for ideal vacuum degree and airflow rate.
  • The AC vacuum pump will power off automatically when the pump temperature reaches 130℃. Such overheat protection can prevent motor from damage because of long-time operation.
  • Made of nitrile rubber, the diaphragm is durable and anti-corrosive. The friction-free operation will not cause any heat or abrasion to the diaphragm.
  • The automated cooling and exhaust system can work continuously around the clock.

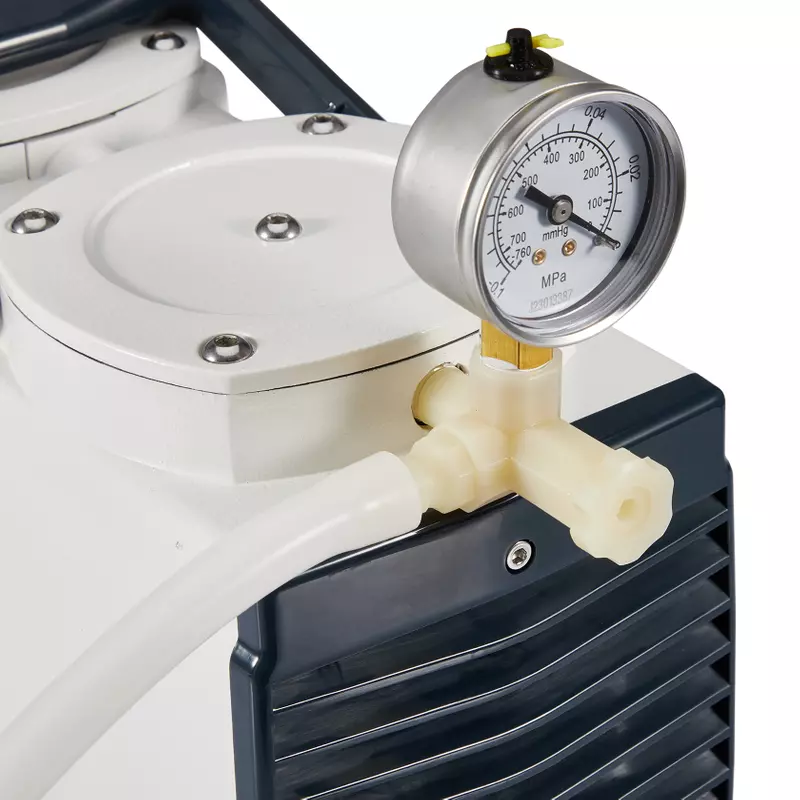

  • Adjustable pressure valve allows for easy control over vacuum degree.
  • High-quality axletrees facilitate steady running and low noise.
  • It features compact size and light weight and is easy to maintain.
  • The smooth instrument surface is free from accumulation of most impurities and particles.

Application

  • Laboratory use
  • Medical and pharmaceutical analysis
  • Chemical engineering
  • Biochemical pharmaceutical
  • Food inspection
  • Forensic science
  • Other application requiring chemical resistance.
Specifications

Specifications

Product name Diaphragm Vacuum Pump
Model No. RVP01
Pumping speed 30L/Min
Ultimate pressure vacuum ≥0.95Mpa, 50mbar
Operating voltage AC 220V
Housing temperature in operation <55℃
Motor power 160 W
Inlet diameter 6 mm
Outlet Silencer
Permissible ambient temperature 7-40 ℃
Pump heads 2
Dimensions (L/W/H) 350 x 130 x 235 mm
Noise <60 db
Weight 9 kg
Diaphragm valve material NBR
