Emulsions and foams are constantly in motion during production or transport. The interfaces of droplets or bubbles are stretched during these processes and the surface tension or interfacial tension responds to the stretching. The speed and degree of this response have an impact on the stability of food or personal care products and influence the yield in enhanced oil recovery (EOR). Interfacial rheology measurements with the DSA30R Drop Shape Analyzer give the relevant results for optimizing products and processes.

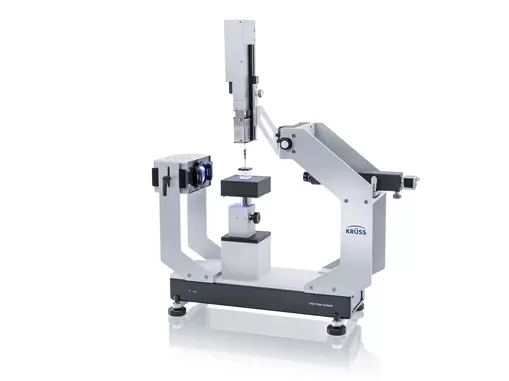

DSA30R
Analyses in interfacial rheology – time-saving and reproducible
Description
SPECIFICATIONS
SPECIFICATIONS
Dosing System
| Syringe Dosing | software-controlled |
|---|---|
| Drop deposition (syringe dosing) | manual |
| Syringes, volume | glass (450 μL) |
| Resolution (syringe dosing) | 0.1 μL with provided syringe |
| Speed (syringe dosing) | 10 to 900 μL/min with provided syringe |
| Maximum volume variation | 2.5 μL |
| Viscosity range | max. 5000 mPas with NE45 needle max. 10 mPas with NE44 needle |
| Frequency | 0.001 to 30 Hz |
Camera system (standard)
| Model | Camera CF04 |
|---|---|
| Connection | USB 3.0 |
| Resolution | 1920 × 1200 px |
| Frame rate | 2300 fps |
| Dark noise | 7 electrons |
| Dynamic range | 73 dB |
Optics (standard)
| Focus | manual |
|---|---|
| Zoom | 6.5× zoom, manual |
| View angle | ±3° |
| Field of view | CF04: 3.2 mm × 3.2 mm to 18.5 mm × 18.5 mm |
| Resolution of optics | CF04: 2.5 to 16.2 μm |
Illumination
| Types | high power monochromatic LED |
|---|---|
| Wave length, dominant | 470 nm |
| Field of light | Ø 42 mm |
Stages
| Control | z-axis: manual |
|---|---|
| Height | z- axis: 45 mm |
| Resolution | 16.4 mm/turn |
Camera system (optional)
| Model | 5 megapixel high speed camera CF10 |
|---|---|
| Connection | USB 3.0 |
| Resolution | 2592 × 2048 px |
| Frame rate | 3450 fps |
| Dark noise | 9.3 electrons |
| Dynamic range | 60 dB |
Optics (optional)
| Focus | manual |
|---|---|
| Zoom | 6.5× zoom, manual |
| View angle | ±3° |
| Field of view | CF10: 7.1 mm × 5.6 mm to 49.8 mm × 39.4 mm |
| Resolution of optics | CF10: 2.7 to 19.2 μm |
Optics with extender lense (optional)
| Zoom | 2× magnification, fixed |
|---|---|
| Field of view | with CF04: 1.5 × 1.5 to 10.1 × 10.1 mm with CF10: 2.7 × 2.1 to 18.0 × 14.2 mm |
| Resolution | with CF04: 1.3 to 8.4 μm with CF10: 1.0 to 7.0 μm |
Software
| Software type | ADVANCE |
|---|---|
| Software languages | Chinese (simplified), English, French, German, Japanese, Korean, Portuguese, Russian, Spanish |
| Software modules | Interfacial and surface tension of liquids: – interfacial rheology (recommended) – pendant drop, rising drop (optional) – Contrained Sessile Drop (optional) |
Pendant drop/rising drop
| Results | interfacial tension surface tension |
|---|---|
| Range | 0.01 to 2000 mN/m (software-based) |
| Resolution | 0.01 mN/m (software-based) |
| Precision | ±0.2 mN/m (instrument-based) |
| Models | Young-Laplace |
| Types | static dynamic |
Constrained Sessile Drop
| Results | surface tension |
|---|---|
| Range | 0.01 to 2000 mN/m (software-based) |
| Resolution | 0.01 mN/m (software-based) |
| Models | Young-Laplace |
Oscillating drop
| Results | E, E’, E”, phase shift |
|---|---|
| Programmable wave forms | sine |
| Models | Lucassen |
Sample dimensions
| Maximum sample space | 320 mm × ∞ × 275 mm (W × D × H) (without axes) |
|---|
Instrument dimensions
| Footprint | 610 mm × 250 mm (W × D) |
|---|---|
| Height | 750 mm |
| Weight (without accessories) | 13 kg |
Environment
| Operating temperature | 10 to 40 °C |
|---|---|
| Humidity | without condensation |
Interfaces
| PC | USB 2.0 or 3.0 |
|---|---|
| Camera | USB 3.0 |
| Oscillating Drop Module – ODM | USB 2.0 or 3.0 |
Housing and peripherals
| Levelling | yes |
|---|
Power supply
| Voltage | 88 to 264 V |
|---|---|
| Power consumption | 100 W |
| Frequency | 50 to 60 Hz |
Temperature measurement
| Range | -10 to 70 °C |
|---|---|
| Resolution | 0.1 °C |
| Precision | ±0.1 °C |
| Accuracy | 1/3 DIN B (±0.1 °C at 0 °C to ±0.8 °C at 400 °C) |
| Locations | syringe chamber cuvette |
| External sensor | 2 connectors (PT100) |
Temperature control
| Equipment | Included: – temperature-controlled syringe – chambers – cuvette |
|---|---|
| Type of temperature control | liquid |
| Range of temperature control | -10 to 70 °C |
| Resolution | 0.1 °C |
| Flow-through thermostat | with liquid |
